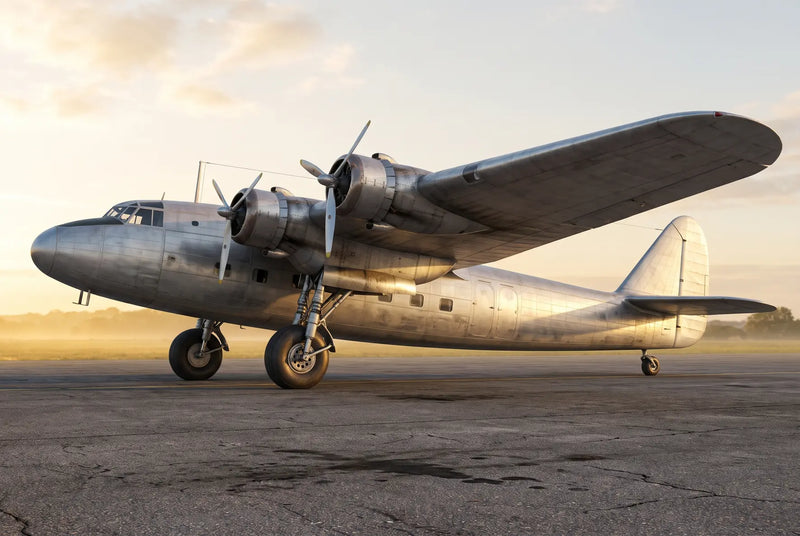

Armstrong Whitworth Ensign: History and Development of the AW.27
The Armstrong Whitworth Ensign (company designation AW.27) was one of the largest British landplane airliners of its era, conceived to meet the demands of Britain's ambitious inter-war air network. Its story is inseparable from the Empire Air Mail Scheme, a government policy launched in 1934 that decreed all first-class mail across the British Empire should travel by air. This created immediate demand for large, four-engined landplanes able to carry both passengers and mail on the overland sectors of routes to Africa, the Middle East and Australia, feeding into the flying-boat services further afield.
Origins and ordering
Imperial Airways drew up a specification for a high-capacity land airliner and passed it to Armstrong Whitworth Aircraft of Coventry in 1934. An initial order for twelve aircraft followed in 1935, later increased to fourteen with an additional pair ordered in 1937. The type was designed under chief designer John Lloyd and, because every aircraft carried a name beginning with the letter E, the fleet became known as the "E-class". Deliveries were originally expected by 1936, but the project proved far more complex than anticipated.
Development, delays and first flight
The Ensign suffered persistent technical setbacks. The Armstrong Siddeley Tiger radial engines and their variable-pitch propellers gave trouble, while the hydraulics and undercarriage of what was then the largest British landplane airliner added to the difficulties. As a result, the prototype, G-ADSR "Ensign", did not make its maiden flight from Hamble until 24 January 1938, roughly two years behind schedule. After certification, scheduled operations began in October 1938 on the Croydon to Paris route, with the first recorded service on 20 October 1938. Eleven aircraft were in service by the outbreak of war in September 1939, while the final two, delayed by wartime conditions, were completed only in 1941. Comprehensive technical detail on the type is documented in the Armstrong Whitworth Ensign reference record.
What distinguishes the Ensign I from the Ensign II
The clearest dividing line within the family lies in the powerplant. The original AW.27 Ensign Mk.I used four Armstrong Siddeley Tiger IXC air-cooled radials of about 850 hp each. In service these proved underpowered and unreliable, giving marginal take-off and climb performance, particularly in hot climates. From 1941 the surviving aircraft were re-engined with American Wright GR-1820 Cyclone radials of roughly 900 to 950 hp, becoming the AW.27A Ensign Mk.II. This conversion transformed the type's take-off, climb and reliability, making it far better suited to long-range and hot-climate routes. Production records list twelve Mk.I aircraft built new, plus two Mk.II built new and eight Mk.I airframes converted to Mk.II standard, from a total of fourteen aircraft.
The main identifiers that set this variant apart from its closest sub-variants are summarised below:
- Ensign Mk.I engines: four Armstrong Siddeley Tiger IXC radials, approximately 850 hp each.
- Ensign Mk.II engines: four Wright GR-1820 Cyclone radials, approximately 900 to 950 hp each (re-engined from 1941).
- Cabin layouts: up to 40 seats in the "Western" European configuration; 27 seats with extra mail capacity in the "Empire" configuration.
- Dimensions: wingspan 37.49 m (123 ft), length 34.8 m (114 ft).
- Weights and performance (Mk.II): maximum take-off weight around 23,813 kg (52,500 lb); maximum speed roughly 210 mph (338 km/h); range about 2,205 km (1,370 miles).
- Configuration: four-engined high-wing monoplane with fixed tailwheel undercarriage.
Wartime service and retirement
When Imperial Airways merged with British Airways Ltd to form BOAC in April 1940, the Ensigns passed to the new corporation. Early in the war they ferried RAF personnel to France, and after the fall of France in June 1940 the survivors operated across North Africa and on long-distance routes such as Cairo to Calcutta until around 1945. Last passenger services were flown in 1946, and, with spares increasingly scarce for so small a fleet, the remaining aircraft were scrapped by 1947. None survives. Readers interested in how later British designers tackled similar capacity and range challenges may find useful context in the development of the Hawker Siddeley Trident, a later jet-age airliner from the same British industrial lineage.
The image shows an Armstrong Whitworth AW.27 Ensign I aircraft in flight. It features the registration number G-ADSR and is marked with 'Imperial Airways London' on its fuselage.
Armstrong Whitworth Ensign: Technical Specifications and Performance
The Armstrong Whitworth Ensign (A.W.27) was conceived as a large four-engined airliner for Imperial Airways, intended to carry passengers and mail across European and Empire routes with greater speed and comfort than the braced biplanes it replaced. Its design brief demanded a balance between generous payload, long range and acceptable field performance, and the result was a high-wing cantilever monoplane with a stressed-skin metal structure, retractable main landing gear and wing flaps, features that were still relatively advanced for a large British airliner of the late 1930s. As documented by the type record on Wikipedia, the flexible cabin allowed up to 40 passengers in four cabins on European services or 27 passengers in three cabins on longer Empire routes.
The Ensign inherited Armstrong Whitworth's contemporary metal construction practice, but its scale and systems integration set it apart. Only around 14 airframes were built, and they were operated in two configurations: the Tiger-powered Ensign Mk I and the re-engined Ensign Mk II (A.W.27A) fitted with Wright Cyclone radials. Long flying duties of this kind placed real demands on crews, a reminder of why understanding a pilot flight duty period, or HOP, matters on extended sectors.
- Crew: 5 (two pilots, radio operator, two cabin stewards)
- Passengers: up to 40 (European, four cabins) or 27 (Empire, three cabins)
- Wingspan: 123 ft (37.5 m)
- Length: 114 ft (34.8 m)
- Height: 23 ft (approximately 7.0 m)
- Wing area: 2,450 sq ft (227.6 m²)
- Maximum weight: Mk I around 55,500 lb (25,200 kg); Mk II operational figure around 52,500 lb (23,813 kg)
- Fuel capacity: 670 imperial gallons (about 3,000 L) in wing leading-edge tanks
- Powerplant: Mk I, four Armstrong Siddeley Tiger IXC radials; Mk II, four Wright GR-1820-G102A Cyclone radials
- Cruise speed: Mk I about 170 mph (275 km/h); Mk II about 180 mph (290 km/h) at 5,000 ft
- Maximum speed: Mk II about 210 mph (approximately 340 km/h)
- Range: approximately 1,370 miles (2,200 km)
- Service ceiling: Mk I about 18,000 ft (5,486 m); Mk II about 24,000 ft (7,300 m)
- Rate of climb: approximately 900 ft/min (4.6 m/s) at sea level
Systems and handling-relevant technology
For its era the Ensign was a comparatively system-engineered aircraft. The retractable main undercarriage folded to reduce drag, a clear step forward from the fixed-gear Handley Page biplanes then in Imperial Airways service, while wing flaps lowered approach and take-off speeds for a large high-wing monoplane. Each engine drove a variable-pitch metal propeller, allowing blade angle to be optimised for take-off, climb and cruise, which improved both field performance and cruise efficiency. The cantilever wing eliminated external bracing drag, and the high-wing layout gave good propeller and airframe clearance over the rough grass airfields of the period.
Published performance figures for the Ensign vary between sources, and this is normal rather than contradictory. Numbers differ because of the two distinct engine fits, because operators used different cabin densities and weights, and because "normal" and "maximum" all-up weights are quoted on different bases. Cruise, ceiling and range also depend on altitude and atmospheric assumptions, so values should be read as representative envelopes rather than absolute guarantees. The Cyclone-powered Mk II generally offered a higher ceiling, slightly greater cruise and maximum speeds and better payload capability than the Tiger-powered Mk I.
Engines: Armstrong Siddeley Tiger and Wright Cyclone
The Mk I used four Armstrong Siddeley Tiger IXC engines, a British 14-cylinder, two-row air-cooled radial developed in the 1930s from the earlier Jaguar. The Tiger VIII/IX family introduced a two-speed supercharger, with take-off power in the region of 850 to 900 hp per engine. The Tiger was a relatively specialised powerplant, and the Ensign was effectively its flagship civil application, which contributed to reliability and support difficulties in service.
To address these shortcomings the Mk II (A.W.27A) was re-engined with four Wright GR-1820-G102A Cyclone radials. The Wright R-1820 Cyclone was a nine-cylinder, single-row air-cooled radial of 1,820 cubic inches (about 29.8 L) built by Wright Aeronautical, and it became one of the most widely produced medium-power radials of its generation. Ensign installations delivered roughly 950 to 1,100 hp per engine depending on the rating. The same engine family powered famous aircraft including the Boeing B-17 Flying Fortress, many Douglas DC-3 and C-47 transports and the Douglas SBD Dauntless. Its maturity, higher power and extensive spares support made the Cyclone an attractive replacement, giving the Ensign Mk II the improved climb, ceiling and reliability that the airline had sought.
Armstrong Whitworth Ensign vs Short Empire vs Handley Page HP.42 vs Douglas DC-3 Specifications
Scroll horizontally to see more →
| Parameter | Armstrong Whitworth Ensign | Short Empire | Handley Page HP.42 | Douglas DC-3 |
|---|---|---|---|---|
| Entry into service | 1938 | 1932 | 1931 | 1936 |
| Engines | 4 × Wright GR-1820-G102A Cyclone radial engines | 4 × Bristol Jupiter or Pegasus radial engines | 4 × Bristol Jupiter or Pegasus radial engines | 2 × Pratt & Whitney R-1830 Twin Wasp radial engines |
| Length | 34.8 m | 26.8 m | 26.8 m | 19.7 m |
| Wingspan | 37.5 m | 40.8 m | 39.6 m | 28.9 m |
| Height | 7.2 m | 6.1 m | 6.1 m | 4.9 m |
| Typical seating and layout (short description + approximate passengers) | Single-class: 27–40 passengers | Single-class: 18–24 passengers | Single-class: 24–38 passengers | Single-class: 21–32 passengers |
| MTOW | 25 t | 12 t | 12.3 t | 11.4 t |
| Range | 1,190 nm | 500 nm | 500 nm | 1,500 nm |
| Cruise speed | 0.28 Mach | 0.20 Mach | 0.19 Mach | 0.24 Mach |
| Service ceiling | 24,000 ft | 16,000 ft | 16,000 ft | 23,200 ft |
| Program note | Large four‑engine landplane developed for Imperial Airways to modernise long‑range Empire services in the late 1930s. | Smaller companion to the HP.42, tailored to shorter‑range Empire routes with lower passenger loads. | Flagship four‑engine biplane airliner of Imperial Airways for long‑distance Empire routes in the early 1930s. | Benchmark all‑metal twin‑engine airliner of the mid‑1930s, widely adopted worldwide and contemporary competitor in regional/medium‑haul markets. |
Scroll horizontally to see more →
The table compares key specs of four 1930s airliners, highlighting how the Armstrong Whitworth Ensign was a larger, heavier four‑engine landplane (25 t MTOW) with higher ceiling (24,000 ft) and longer range (1,190 nm) than the Short Empire and HP.42 (both ~500 nm, 16,000 ft). The DC-3 stands out for the longest range (1,500 nm) with only two engines and competitive cruise.
Armstrong Whitworth Ensign Routes, Missions and Airline Operators
The Armstrong Whitworth A.W.27 Ensign was conceived as a large four-engined landplane for the trunk routes of the late 1930s, bridging short European sectors and long multi-stage Empire services. Its missions ranged from the roughly 200 to 250-mile hop between London and Paris to sprawling routes across the Middle East, Africa and India that were flown in stages with refuelling stops. With a cruise of about 160 to 170 mph and a practical range on the order of 1,100 to 1,300 miles, the type was never intended for long nonstop legs; instead it linked hubs and staging airfields in a hub-and-spoke pattern anchored on London, Cairo and Calcutta. Daily utilisation was constrained by its early unreliability and heavy maintenance burden, so scheduling had to allow generous margins for technical delays. You can read the full type history on Wikipedia's Armstrong Whitworth Ensign entry.
Operationally the aircraft favoured established main airports and staging posts rather than minor regional fields, because its underpowered original Armstrong Siddeley Tiger engines gave poor take-off and climb, particularly in hot-and-high conditions. This was a real challenge for operators: three aircraft dispatched with Christmas mail toward Australia in late 1938 all suffered mechanical problems and failed to reach their destination, prompting a return to the factory for improvements. A later re-engining programme in 1941 to 1943 fitted Wright R-1820 Cyclone radials, which improved payload and performance on demanding sectors but did not eliminate the fabric-surface maintenance difficulties that ultimately hastened retirement. For pilots interested in how demanding route networks are staffed today, see this overview of Freebird Airlines Europe conditions.
Where the Ensign operated
The Ensign's working life was concentrated in Europe and along the imperial corridor linking Africa and Asia, with no scheduled use in North & South America. In Europe, the fleet flew high-density short sectors from London to Paris and connected with onward flying-boat services. Across Africa and Asia, wartime operations moved personnel, mail and passengers between Britain, Egypt, East Africa and India, typically as multi-leg journeys of several hundred to about a thousand miles per stage.
- Europe: Imperial Airways launched the type in October 1938 on the Croydon to Le Bourget London-Paris route, later shifting to Heston after camouflaging in 1939; four aircraft were fitted in the 40-seat European layout. BOAC, formed in November 1939, inherited these services and operated the type on European and support flights early in the war.
- North & South America: no airline operated the Ensign on scheduled services in this region.
- Asia: BOAC flew re-engined aircraft on the Cairo to Calcutta section of the route toward Australia, its final major assignment until 1945, using seven aircraft in the reduced 27-seat Empire configuration.
- Africa: Imperial Airways and then BOAC used the type on Africa to India sectors in the early 1940s, staging through Cairo and East African fields in support of military and civil traffic.
Typical seating configurations
Two distinct cabin layouts defined the fleet. Network and high-frequency European services used a 40-seat arrangement suited to shorter sectors where higher density was acceptable. Long-haul Empire operations used a more spacious 27-seat layout that improved comfort and allowed greater baggage, mail and weight margins for hot-and-high segments. At the outbreak of war the operator held four 40-seat European aircraft and seven 27-seat Empire aircraft, a split that mirrored the mission profiles rather than a leisure-versus-network distinction in the modern sense. Detailed seat maps were not published, but the two-tier approach is well documented in the surviving records collated by Skytamer's A.W.27 Ensign profile and in period fleet accounts. All 14 aircraft were built for a single ownership chain, so configuration variety came from mission need rather than competing carriers.
In this video, watch the Armstrong Whitworth AW-27 Ensign on approach and landing at Mellil Airport in Morocco, featuring a clear view of the aircraft’s handling and touchdown in real-time conditions.
Armstrong Whitworth Ensign Safety Record: How Safe Was It?
The Armstrong Whitworth Ensign (AW.27) was a rare aircraft, with only 14 built between 1938 and 1940 for Imperial Airways and later British Overseas Airways Corporation (BOAC). Its operational life spanned roughly 1938 to 1946, covering demanding Empire routes and, from late 1939, wartime transport duties under National Air Communications. Because the fleet was small and flew comparatively few cycles across just eight years, its accident history must be read against a limited number of flights rather than the millions of sectors typical of modern types. Despite well documented technical shortcomings, the most striking feature of its record is that no passenger or crew fatality was ever recorded in Ensign operations, according to detailed fleet histories such as the summary of the type.
Notable losses and serious incidents
Several Ensigns were written off, but the events were mainly ground, landing or wartime damage cases rather than in-flight structural failures.
- Imperial Airways/BOAC, 1940: at least three aircraft were recorded as total losses during this single year, with no deaths. These reflected the harsh operating tempo of early wartime service and the type's marginal power margins on hot or heavy sectors.
- Wartime write-offs (1940 onward): additional airframes were lost or damaged beyond economic repair through enemy action and operational stress while supporting military movements. As with earlier events, occupants survived.
- Engine reliability and range limitations: the original four Armstrong Siddeley Tiger engines (around 810 hp each) left the aircraft underpowered for its size. This drove a re-engining programme with Wright Cyclone radials of roughly 1,100 hp each, improving performance and reducing the operational risks tied to insufficient thrust.
Because the Ensign predates modern investigation frameworks, it has no dedicated entry in contemporary databases such as the Aviation Safety Network, so per-aircraft causal detail is preserved mainly in archival fleet logs. What is consistent across sources is that design lessons of the era, especially the need for adequate power reserves and engine reliability, fed directly into later airliner requirements and certification thinking.
How safe is the Armstrong Whitworth Ensign?
Judged by outcomes, the Ensign achieved a zero-fatality record across its service life despite multiple hull losses and acknowledged reliability problems, an unusual result for a large multi-engine transport of the late 1930s. Set against its low traffic volume, this cannot be compared statistically with modern jets, yet it shows that its structural design and crew procedures protected occupants even when airframes were lost. The type's weaknesses lay in performance and dispatch reliability rather than in occupant safety. Modern operations build on standardised procedures, disciplined crew training and independent regulatory oversight, and pilots continue to work within strict duty and fitness rules, as reflected in guidance on pilot conditions at major carriers. For a broader statistical picture, authoritative reviews such as ICAO safety data confirm that, thanks to this layered safety system, commercial aviation remains one of the safest modes of transport.
01 What kind of routes and missions did the Armstrong Whitworth Ensign typically fly?
The Armstrong Whitworth Ensign was designed as a long-range landplane for Imperial Airways and later BOAC, mainly serving trunk routes from the United Kingdom to Africa and Asia via intermediate stops. In service from the late 1930s, it was used on routes such as London to Lagos and London to Cairo, often with multiple legs due to its range and the need for refuelling. The aircraft’s mission profile focused on carrying passengers and mail over empire routes, operating from prepared airfields rather than water like contemporary flying boats. During World War II, some Ensigns were also employed on military transport and troop-carrying duties, extending their operational role beyond purely civilian service.
02 How was the cabin layout and passenger experience on the Armstrong Whitworth Ensign?
The Armstrong Whitworth Ensign featured a spacious, multi-compartment cabin typical of late-1930s airliners, with seating for around 40 passengers depending on configuration. The layout usually included separate smoking and non-smoking sections and generous headroom, reflecting the slower, more comfortable style of travel of the era. Noise levels were higher than modern jet aircraft because of the four radial piston engines and less advanced sound insulation, but the relatively low cruising altitude allowed broad window views and a calmer pressurization-free environment. Passenger service was closer to ocean liner traditions, with a focus on comfort, meals, and onboard service on long multi-leg journeys.
03 Which airlines operated the Armstrong Whitworth Ensign and on what types of routes?
The Armstrong Whitworth Ensign was built almost exclusively for Imperial Airways, which became part of British Overseas Airways Corporation (BOAC) after 1940. These operators deployed the Ensign on empire routes linking the UK with destinations in Africa, the Middle East, and parts of Asia, often as landplane companions to flying boats. Typical operations involved multi-stop sectors via European and Mediterranean waypoints, then onward to colonial hubs such as Khartoum, Nairobi, and Lagos. After the onset of World War II, surviving Ensigns were absorbed into BOAC’s fleet and used more flexibly, including military and government transport tasks as route priorities shifted.
04 How did the Armstrong Whitworth Ensign perform compared with similar airliners of its time?
The Armstrong Whitworth Ensign was a large four-engine airliner, roughly comparable in role to aircraft like the Short Empire flying boats and early Douglas DC series, but optimized as a landplane for long-range colonial services. Its cruising speed and range were adequate for the late 1930s, but not exceptional, and operational reliability was affected by early engine and systems issues that required modifications. The Ensign’s four-engine configuration provided redundancy and good payload capability, allowing it to carry passengers and significant mail loads over extended sectors. However, the rapid pace of airline technology and the arrival of more efficient, lighter all-metal designs meant its performance and economics were soon surpassed by newer types.
05 What is known about the safety record and design features of the Armstrong Whitworth Ensign?
The Armstrong Whitworth Ensign incorporated robust all-metal construction, four-engine redundancy, and conventional taildragger landing gear, reflecting the safety priorities of pre-war long-haul operations. Its safety record includes a small number of hull losses, some related to wartime operations and the challenging environments in which it flew, but it was not associated with any single notorious design flaw. Early service highlighted issues with engine reliability and operating weight, leading to changes such as engine upgrades and structural refinements to improve performance and safety margins. Like other aircraft of its era, the Ensign operated without modern avionics and weather radar, so safety relied heavily on crew skill, route planning, and ground-based navigation aids.
06 What would the ride feel like for a passenger on an Armstrong Whitworth Ensign flight?
A flight on the Armstrong Whitworth Ensign would feel quite different from modern jet travel, with lower cruising altitudes, more engine vibration, and more pronounced propeller noise. The large wing and four-engine layout generally produced a stable ride, but turbulence was more noticeable because flights often followed weather at relatively low levels and lacked modern forecasting tools. Cabin pressure was at or near ambient, so passengers experienced more frequent stops and lower flight levels instead of long, high-altitude cruise segments, which helped reduce issues like severe hypoxia. Window views were expansive, and the slower pace of travel, regular stopovers, and attentive cabin service offered a more leisurely, liner-style journey despite the less refined noise and comfort environment.
