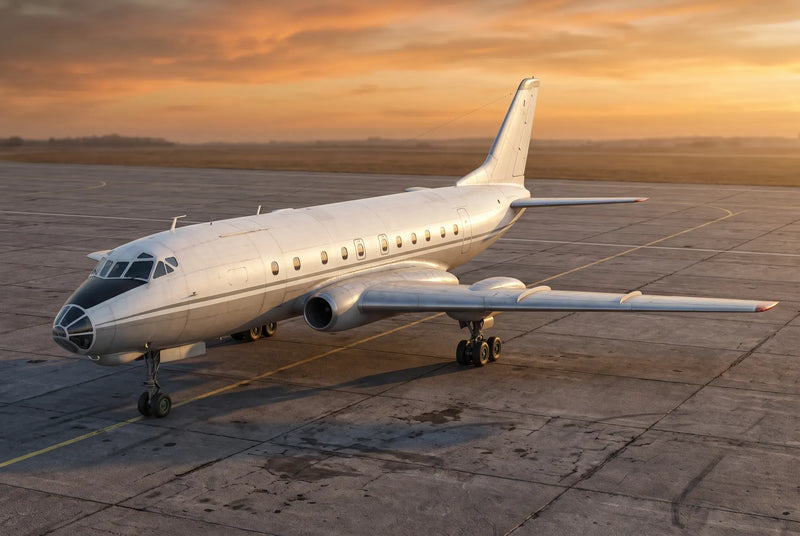

Tupolev Tu-124 explained: a Soviet short-range jet

The Tupolev Tu-124 was a short-range twin-jet airliner created to modernise the Soviet domestic network in the early 1960s. By the late 1950s, Aeroflot still relied on ageing piston types such as the Lisunov Li-2 and Ilyushin Il-14 for short sectors, and the Tupolev design bureau (OKB) set out to replace them with a smaller, faster jet. In July 1958 the OKB began work on a regional jet derived directly from the medium-range Tupolev Tu-104, the type that had already introduced jet travel to the USSR. The result is often described as roughly a 75% scaled-down Tu-104: visually similar, but with substantial aerodynamic and systems changes rather than a simple copy.

The aircraft was designed by Tupolev OKB and built in series at the Kharkiv Aircraft Factory No. 135 in Ukraine, where the Tu-124 line effectively replaced Tu-104 production. NATO assigned it the reporting name Cookpot. The prototype made its first flight from Zhukovsky airfield on 24 March 1960, with series production following over the next two years. Deliveries to Aeroflot, the launch and principal operator, began in August 1962, and the first scheduled passenger service ran between Moscow and Tallinn on 2 October 1962. The type remained in front-line service for nearly two decades; Aeroflot decommissioned its last twelve Tu-124s on 21 January 1980.

The Tu-124's defining technical feature was its powerplant. It was the first operational Soviet airliner powered by turbofan engines, using two Soloviev D-20P units rated at roughly 53 kN of thrust each. These turbofans were quieter and more fuel-efficient than the Mikulin AM-3 turbojets of the Tu-104, a genuine generational advance. The airframe also introduced double-slotted flaps, automatic spoilers and a large centre-section airbrake, while the inboard wing trailing edge was unswept. Combined with low-pressure tyres, these features let the aircraft operate from short and semi-prepared runways, suiting the unevenly developed Soviet route network. Production totalled around 164 to 165 aircraft, built through the mid-1960s. Further technical details are documented in reference databases such as the Tu-124 type entry and aviation history resources like AirHistory.

What distinguishes the Tu-124V from earlier and later variants

Several variants emerged during production. The baseline Tu-124 seated 44 passengers at a lower maximum takeoff weight of about 34,500 kg. The improved Tu-124V, the main passenger version, raised seating to 56 and offered greater range and a higher takeoff weight, entering service around 1964. The Tu-124K was a VIP or executive configuration with a reconfigured interior, used by state bodies and some foreign operators, while the Tu-124Sh served as a navigation and crew trainer. Compared with the larger Tu-104 it replaced, the Tu-124 was almost 10 m shorter and carried fewer passengers, but its turbofans and high-lift devices made it markedly better suited to regional work. It also served as a conceptual stepping stone toward the later rear-engined Tupolev Tu-134.

The following points summarise the principal variant identifiers for the standard Tu-124V:

• Engines: two Soloviev D-20P low-bypass turbofans, about 53 kN each.
• Capacity: 56 passengers (44 on the baseline Tu-124).
• Dimensions: length ~30.6 m, wingspan 25.55 m, wing area 119.48 m².
• Weights: empty ~22,900 kg; maximum takeoff weight up to 37,500 kg.
• Performance: cruise around 800 to 870 km/h, range about 2,100 km, service ceiling near 11,700 m.
• Distinct systems: double-slotted flaps, automatic spoilers, centre-section airbrake and low-pressure tyres for short-field use.

The Tu-124's safety record was mixed, with several fatal accidents and hull losses over its career, better than the Tu-104 but behind many Western contemporaries. The most famous event was the 1963 ditching of an Aeroflot Tu-124 on the Neva River in Leningrad after fuel exhaustion. The crew carried out a successful water landing with all aboard surviving, an outcome widely cited as remarkable for a jet airliner. The incident drew attention to fuel-management and emergency procedures in Soviet civil aviation, yet it did not end the type's career, which continued well into the 1970s. For broader context on operators and pilot conditions across global carriers, see this overview of airline operations and crew conditions. Taken together, the Tu-124 stands as an important transitional design, marking the USSR's move from turbojet to turbofan power and refining the regional jet concept that later types would carry forward.

The Tupolev Tu-124 was conceived as a short-range jet airliner to replace piston types such as the Ilyushin Il-14 on regional Aeroflot routes. It is essentially a scaled-down derivative of the Tu-104, retaining the same swept low-wing layout and rear-fuselage engine arrangement but in a smaller airframe sized for shorter sectors and modest runways. Its defining technical trade-off was field performance and short-haul economy over outright range: the design accepted a limited payload-range envelope in exchange for the ability to operate jets into less-developed airfields.

Its most significant claim is propulsion: the Tu-124 was the first Soviet airliner to enter service with turbofan engines, marking an important step in Soviet civil propulsion. Figures below refer mainly to the principal production model, the Tu-124V, the best-documented variant.

• Length: 30.58 m (100 ft 4 in)
• Wingspan: 25.55 m (83 ft 10 in)
• Height: 8.08 m (26 ft 6 in)
• Wing area: approximately 119 m²
• Empty weight: approximately 22,500–22,900 kg
• Maximum takeoff weight (MTOW): 37,500–38,000 kg
• Maximum payload: approximately 6,000 kg
• Internal fuel: approximately 13,500 kg
• Passengers: up to 56 (Tu-124V); about 44 on the early Tu-124
• Cruise speed: approximately 800–870 km/h
• Maximum speed: approximately 970 km/h
• Service ceiling: 11,700 m (about 38,400 ft)
• Range: approximately 2,100 km with a 3,000 kg payload; about 1,220 km at maximum payload
• Engines: 2 × Soloviev D-20P low-bypass turbofans, approximately 53 kN each

Systems and handling-relevant technology

As a first-generation Soviet jet, the Tu-124 used a conventional aileron, elevator and rudder layout on a swept low wing, with hydraulically boosted primary controls and mechanical linkage from a three-crew cockpit (captain, first officer and flight engineer). High-lift was provided by trailing-edge flaps inherited from the Tu-104 line, which lowered approach speeds to suit shorter runways. Hydraulic circuits powered the flight-control boosters, tricycle landing gear, wheel brakes and flaps, while bleed-air feeding cabin pressurisation and air conditioning supported the high service ceiling. Avionics were electromechanical, with VHF and HF radios, radio navigation aids and a nose-mounted radar radome similar to the Tu-104. General overviews of the type are documented on Wikipedia and on Aerospaceweb.

Published performance figures for the Tu-124 vary between sources, and the differences are normal rather than contradictory. Quoted weights depend on whether the early Tu-124 or the 56-seat Tu-124V is meant; range depends entirely on the assumed payload, which is why roughly 2,100 km appears with a 3,000 kg load but drops to about 1,220 km at full payload. Cruise speed is similarly stated as a band because economic and high-speed cruise differ, and climb and field-length numbers shift with weight, temperature, altitude and runway condition. Numbers should therefore be read with their stated basis, not as absolute values. Additional technical tables appear at flugzeuginfo.net and Aviastar.

The Soloviev D-20P engines

The Tu-124 is powered by two Soloviev D-20P twin-spool, low-bypass turbofans, each rated at roughly 53 kN (about 11,900–12,100 lbf), with some documentation noting a higher emergency rating. The engine was developed by the design bureau led by Pavel A. Soloviev, later known as the Perm engine design house, as a more efficient successor to the turbojets fitted to the Tu-104. Its adoption made the Tu-124 one of the earliest short-range turbofan airliners in the world and the first turbofan-powered Soviet airliner to enter service. Among serial airliners, the Tu-124 family (including the Tu-124V and the D-20P-125-engined Tu-124B) is the primary application of this engine. Readers comparing it with contemporary Western turbofan-powered jets can see how a larger long-range design approached propulsion in the McDonnell Douglas DC-8-63, while engine-specific background is summarised on Wikipedia. The Soloviev bureau later built on this experience with the D-30 series that powered the Tu-134 and other types.

The Tupolev Tu-124 was conceived as a short-range regional jet to replace the Ilyushin Il-14 turboprop on Soviet domestic services. Its mission profile centred on sectors of roughly a few hundred to about 1,500 km, equivalent to flights of around 1 to 2.5 hours, well within its quoted range of approximately 2,100 km with a 3,000 kg payload. Cruise speed sat in the 800-870 km/h band, with a service ceiling near 11,700 m. As one of the early Soviet jet airliners, it served as a regional workhorse rather than a long-haul type, linking major hubs with secondary and regional airports.

Operationally, the aircraft fitted a hub-and-spoke model built around large Soviet gateways such as Moscow-Vnukovo, feeding traffic to provincial cities. Its inaugural scheduled service ran Moscow to Tallinn on 2 October 1962. Daily utilisation favoured multiple short rotations rather than a few long sectors. Challenges for operators included a relatively high fuel burn compared with later turbofan designs, modest capacity, and the demanding maintenance typical of first-generation jets, which encouraged a fairly rapid transition to the more efficient Tu-134 during the 1970s.

Where the Tupolev Tu-124 operates

The type operated almost entirely across Europe, including the western Soviet Union and Eastern Bloc, with limited reach into Western Europe and the Middle East within Asia. There is no confirmed scheduled service across North & South America, and its presence in Africa was negligible. Missions ranged from domestic Soviet regional flights to short international routes operated by export carriers, plus VIP and military transport duties using dedicated variants. Readers interested in a modern regional comparison can review the Airbus A220-100.

• Europe: Aeroflot was by far the largest operator, flying domestic sectors such as Tallinn-Moscow, Mineralnye Vody-Rostov-on-Don and services to Minsk, Volgograd and Kuybyshev (now Samara) until withdrawal on 21 January 1980. CSA Czechoslovak Airlines used the type on short and medium-haul European routes, including services reaching Zurich-Kloten. Interflug of East Germany flew it on regional and European routes, and the East German Air Force operated VIP examples.
• North & South America: no documented airline operations. The type was not exported to or flown commercially across these regions, reflecting its short range and Eastern Bloc procurement context.
• Asia: Iraqi Airways and the Iraqi Air Force operated the aircraft on regional services centred on Baghdad, with examples remaining in Iraq into the early 1990s. Soviet operations also extended across the Asian portion of the USSR.
• Africa: no confirmed civil or military operations are documented in authoritative sources.

Typical seating and cabin layouts

Cabin configurations followed a single-aisle, 2+2 layout across all versions. The original Tu-124 typically seated 44 passengers, while the principal production Tu-124V carried 56, with documented two-class layouts of 6 premium and 50 economy seats at roughly 81 cm (32 in) pitch. Network carriers such as Aeroflot, CSA and Interflug favoured these higher-density passenger layouts, and some airframes were densified to between 48 and 60 seats. Lower-density variants served different missions: the Tu-124K deluxe combi seated 36 and could be converted to cargo, while the VIP Tu-124K2 carried just 22 passengers, with five built and exported, notably to East Germany. Detailed technical and variant data are documented by Aviastar and Aerospaceweb, while accident and operator histories are catalogued by the Aviation Safety Network. Production totals vary across sources, ranging from about 100 to roughly 164-165 aircraft built during the early to mid-1960s.

The Tupolev Tu-124 was a short-range twin-jet airliner built in relatively small numbers, with around 164 airframes produced before manufacturing ended in 1965. It entered scheduled service with Aeroflot in the early 1960s and remained operational until the carrier withdrew its last twelve examples on 21 January 1980. Aeroflot operated the vast majority of the worldwide fleet on domestic feeder routes, with smaller numbers flown by Iraqi Airways and other Eastern Bloc state operators. Across its career, the Aviation Safety Network records fifteen hull-loss accidents, with two additional Iraqi Airways aircraft destroyed on the ground during the 1991 Gulf War. Set against a production run of 164 jets and nearly two decades of intensive short-haul cycles, this loss rate reflects the limited automation, modest performance margins and early jet-era operating standards of its time. Like the contemporary Antonov An-12, the Tu-124 served in an environment with far less robust regulatory oversight and crew training systems than exist today.

Notable accidents and what changed afterwards

Several events shaped how the type was operated and how later Soviet airliners were designed.

• Aeroflot Neva River ditching, 1963. A Tu-124 (CCCP-45021) flying the Tallinn-Moscow route diverted to Leningrad after the landing gear failed to retract. While the crew was occupied troubleshooting, both engines flamed out from fuel exhaustion, forcing a ditching in the Neva River. All 52 occupants survived. The event became a textbook case for improved fuel-state monitoring and the principle, later formalised as crew resource management, that troubleshooting must never override primary flight management.
• Aeroflot Flight 513, 1965 (near Kuybyshev). A Tu-124V stalled and crashed shortly after takeoff, killing 30 of 39 on board. The accident reinforced attention to correct climb profiles, configuration control and weight-and-balance discipline during the critical departure phase.
• Aeroflot Flight 99, 1965 (near Murmansk). During a poor-visibility approach, the crew mistook non-aeronautical ground lights for runway threshold lights and the aircraft struck the frozen Lake Kilpyavr, with 32 of 64 occupants killed. The accident underlined the hazards of relying on visual cues in marginal weather and supported the wider move toward standardised approach lighting and instrument procedures.
• Aeroflot Flight 5484, 1979 (near Kirsanov). The deadliest Tu-124 accident occurred when a flap was inadvertently extended in flight, causing a spin and in-flight breakup that killed all 63 on board. This event influenced the later emphasis on configuration warning systems and interlocks to prevent flap or gear deployment outside safe flight envelopes, and is cited among the factors behind the type's retirement.

How safe is the Tupolev Tu-124?

Judged by modern standards, the Tu-124 reflects the safety expectations of the early jet age rather than those of contemporary aviation. Its accident history is best read in context: a small fleet, intensive short-cycle operations, limited cockpit automation and a regulatory framework far less mature than today's. The recurring causal themes, fuel mismanagement, stalls on departure, visual approach errors and configuration mistakes, were not unique to the type but common across that generation of aircraft, and each fed lessons into the design philosophy, standard operating procedures and training that followed. The Tu-124 was ultimately superseded by the Tu-134 and Tu-154, which offered better performance margins and more modern systems. It is important to keep these figures in perspective: as documented by the ICAO Safety programme and long-run accident statistics, commercial aviation has become dramatically safer over the decades, and flying remains one of the safest modes of transport available today.
