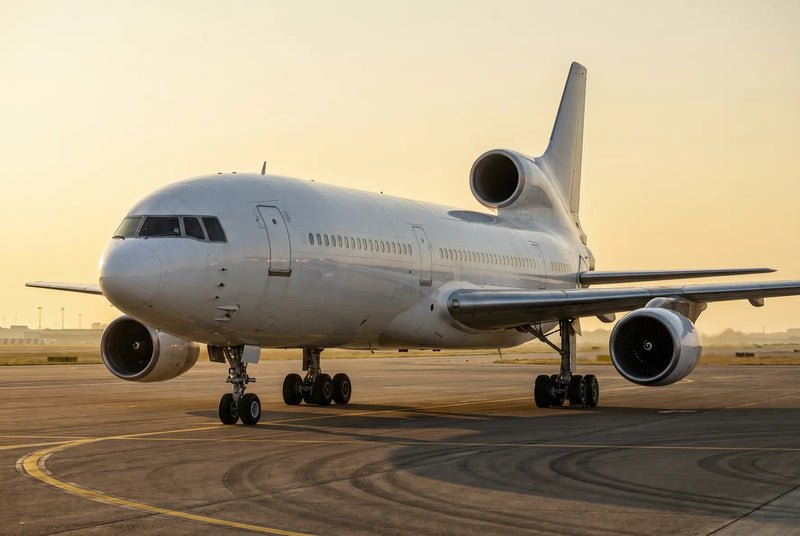

Lockheed L-1011-500 explained as a long-range Tristar

The Lockheed L-1011 TriStar programme was born from a late 1960s requirement for a new generation of wide body airliners capable of serving high density domestic and medium haul routes with greater efficiency than the Boeing 747. In March 1968, Lockheed launched the L-1011 with orders from TWA and Eastern Air Lines, selecting the Rolls-Royce RB211 turbofan as the sole powerplant. Assembly took place at the Lockheed facility in Palmdale, California, and the first L-1011-1 prototype completed its maiden flight on 16 November 1970. However, the programme suffered a major setback when Rolls-Royce entered receivership on 4 February 1971, unable to absorb the spiralling development costs of the RB211 engine. The British government nationalised the engine division and allowed work to continue, but the crisis delayed FAA certification of the L-1011-1 until April 1972 and gave the rival McDonnell Douglas DC-10 roughly a year's head start in commercial service.

While the baseline L-1011-1 proved itself on domestic and regional routes, airlines needed a variant capable of true intercontinental range. Lockheed responded by developing the L-1011-100 and L-1011-200, which added centre section fuel tankage and the more powerful RB211-524B engine respectively, but these incremental upgrades still fell short of transatlantic nonstop capability with a full payload. It was this gap in the market that drove Lockheed to launch a more ambitious derivative.

In August 1976, Lockheed formally launched the Lockheed L-1011-500, a structurally redesigned long range variant intended to compete with the DC-10-30 on intercontinental services. British Airways became the launch customer, and the variant attracted orders from airlines including Delta Air Lines, Pan American World Airways, Air Canada, LTU, BWIA, Alia Royal Jordanian, and TAP Air Portugal. The L-1011-500 prototype (using the converted original L-1011 airframe, registration N1011) completed its first flight on 16 October 1978. British Airways took delivery of its first production aircraft in April 1979 and inaugurated revenue service on 7 May 1979 on the London Heathrow to Abu Dhabi route. Delta Air Lines followed with its first L-1011-500 service on 17 June 1979, making the variant the backbone of its growing international network.

Lockheed manufactured a total of 250 L-1011 TriStars across all variants between 1968 and 1984, of which approximately 50 were L-1011-500s. The programme never reached the roughly 500 unit break even point, and Lockheed exited the commercial aircraft market entirely after the final TriStar delivery in 1984. The L-1011-500 stands as the last and most capable commercial airliner produced by Lockheed. In the decades that followed, twin engine wide bodies such as the Airbus A320 family and the Boeing 767 reshaped the market, making three engine designs progressively obsolete.

What Distinguishes the Lockheed L-1011-500 from Other TriStar Variants

The L-1011-500 was not a simple stretch or engine swap. It represented a thorough structural rework of the TriStar airframe, optimised for range rather than passenger volume. Compared to the standard L-1011-1, the fuselage was shortened by 4.11 metres (13 ft 6 in), reducing the overall length to approximately 50.05 metres. This shorter cabin resulted in a typical capacity of around 246 passengers in a two class layout versus approximately 300 on the L-1011-1, but the weight savings and improved centre of gravity allowed significantly more fuel to be carried.

The wings received extended wingtips that increased the span by 2.74 metres to a total of 50.09 metres, enlarging the wing area from 320 square metres to 329 square metres. Lockheed also introduced active ailerons for load alleviation, a system that sensed gust loads and commanded aileron deflections to reduce wing bending moments. This innovation allowed the extended wing structure to remain lighter than it would otherwise have been and contributed to improved ride quality. All three engines were Rolls-Royce RB211-524B turbofans rated at approximately 50,000 lbf (222 kN) of thrust each, shared with the L-1011-200 but optimised here for long range cruise efficiency. With maximum fuel, the L-1011-500 could achieve a range of approximately 9,900 kilometres (5,350 nautical miles), making nonstop transatlantic operations routine.

The following identifiers summarise the key characteristics that set the Lockheed L-1011-500 apart from earlier TriStar variants:

• FAA type designation: L-1011-385-3
• Engines: 3 × Rolls-Royce RB211-524B (or -524B4) turbofans, each approximately 50,000 lbf thrust
• Fuselage: shortened by 4.11 m versus the L-1011-1, with three passenger doors per side instead of four
• Wingspan: 50.09 m (extended wingtips, +2.74 m over earlier variants)
• Wing area: 329 m² (versus 320 m² on L-1011-1)
• Active ailerons: gust load alleviation system unique to the L-1011-500
• Galley configuration: all galleys relocated to the main deck (underfloor galleys removed)
• Maximum takeoff weight: approximately 224,980 kg (510,000 lb)
• Range: approximately 9,900 km with full passenger payload

The Lockheed L-1011-500 was conceived as the ultra long range member of the TriStar family, optimised for intercontinental sectors that earlier variants could not serve efficiently. To achieve this, Lockheed shortened the fuselage by 4.11 m compared to the L-1011-1, reducing structural weight and passenger capacity, while extending the wingspan by 2.74 m to 50.09 m. The result was a widebody trijet that traded seat count for transoceanic range, making it attractive to operators needing nonstop capability on thin, long haul routes. Centre section fuel tanks provided a total capacity of approximately 119,885 litres, a significant increase over the standard TriStar's 100,100 litres.

Much of the airframe technology was inherited from the earlier L-1011 variants, but the -500 introduced the Active Control System (ACS), a fully automatic digital system using dual redundant computers to reduce gust and manoeuvre loads on the longer wings. This innovation improved ride quality, reduced structural fatigue, and contributed to fuel savings. The -500 also retained the TriStar's hallmark CAT IIIb autoland capability, Direct Lift Control (DLC) for precise glideslope tracking, and the Performance Management System (PMS) that automatically trimmed the aircraft for optimal cruise speed.

• Overall length: 50.05 m
• Wingspan: 50.09 m (with active ailerons for ACS)
• Height: 16.87 m
• Wing area: 329 m²
• Maximum Takeoff Weight (MTOW): 231,540 kg
• Maximum Landing Weight (MLW): 166,920 kg
• Operating Empty Weight (OEW): approximately 109,300 kg
• Fuel capacity: approximately 119,885 litres
• Typical seating: 234 (three class) to 315 (high density single class)
• Manufacturer range: approximately 9,900 to 10,370 km with typical mixed class payload
• Maximum cruise speed: Mach 0.86 to 0.88 (approximately 518 kt)
• Service ceiling: 42,000 ft
• Takeoff field length at MTOW: 2,636 m
• Landing field length: 2,073 m
• Engines: 3 × Rolls-Royce RB211-524B4 turbofans, each rated at 222.4 kN (50,000 lbf)

Systems, Flight Controls and Automation

The L-1011-500 employed a highly redundant Avionic Flight Control System (AFCS) that integrated several subsystems. The Stability Augmentation System (SAS) provided yaw damping and turn coordination, while the Autopilot/Flight Director System handled heading select, VOR navigation, localiser tracking, approach, landing, and go around modes. A dedicated Speed Control System managed autothrottle functions and stall margin protection. The Flight Control Electronic System (FCES) coordinated pitch trim, Mach trim, altitude alerting, automatic ground speed brakes, and DLC. Four independent hydraulic systems powered the flight controls, providing fail operational redundancy essential for low visibility autoland operations.

The aircraft's Active Control System on the -500 variant was a pioneering application of digital fly by wire concepts in commercial aviation. Two dual channel computers sensed aerodynamic loads on the extended wing and commanded aileron deflections automatically, without pilot input. This kept structural stresses within limits while allowing Lockheed to use a lighter wing structure than would otherwise have been required for the increased span.

Published performance figures for the L-1011-500 can vary noticeably between sources. Differences typically arise from operator specific weight configurations, cabin density choices, atmospheric assumptions (ISA versus ISA+15 °C), runway elevation, and whether figures reflect manufacturer brochure conditions or airline operational data. Even within a single airline fleet, performance varied as operators selected different galley, lavatory, and seating arrangements. Range figures are especially sensitive to payload assumptions: a figure stated with 234 passengers in three class configuration will differ substantially from one calculated with maximum fuel and reduced payload. Operators flying from challenging environments, such as remote regional airlines in demanding climates, understand well how local conditions affect real world aircraft performance.

Rolls-Royce RB211-524B4 Engines

The L-1011-500 was exclusively powered by three Rolls-Royce RB211-524B4 turbofan engines, each producing 222.4 kN (50,000 lbf) of takeoff thrust. The RB211 programme has a storied history: development began in the 1960s at Rolls-Royce in Derby, initially targeting the Lockheed TriStar competition with a revolutionary three spool architecture. First engine runs occurred in 1969, but the original carbon fibre (Hyfil) fan blades failed bird strike tests in 1970, forcing a costly redesign to titanium. The resulting cost overruns pushed Rolls-Royce into insolvency in 1971, leading to nationalisation by the British government. The RB211-22B entered service in 1972 on the L-1011-1, rated at 42,000 lbf.

Rolls-Royce then developed the -524 family for higher thrust applications. The RB211-524B was introduced in 1977, initially for the Boeing 747, and the -524B4 variant was selected for the L-1011-500. The three spool design, with independent low pressure, intermediate pressure, and high pressure spools, enabled efficient matching of compressor and turbine speeds. The -524B4 featured a bypass ratio of approximately 5:1, an overall pressure ratio of 28.3:1, a fan diameter of 2.19 m, and an air mass flow of 386 kg/s. This architecture provided fuel efficiency advantages over competing two spool designs of the era.

The broader RB211-524 family went on to power the Boeing 747-200 and 747-400 (in -524G and -524H variants rated up to 60,600 lbf), while the related RB211-535E4 powered the Boeing 757. The three spool concept pioneered by the RB211 ultimately evolved into the Rolls-Royce Trent family, which today powers the Airbus A330, A350, A380, and Boeing 787. The RB211 programme, despite its troubled birth, became one of the most consequential engine developments in commercial aviation history.

The Lockheed L-1011-500 was engineered specifically for long haul operations, filling a niche that the earlier TriStar variants could not reach. With a maximum range of approximately 10,300 km (5,560 nautical miles) carrying around 248 passengers in a typical two class layout, this variant excelled on transoceanic and intercontinental sectors. Typical stage lengths ranged from 5,000 to 10,000 km, covering routes such as transatlantic crossings between Europe and North America, as well as links to the Middle East and South America.

Fleet utilisation data indicates that widebody trijets of this era averaged roughly 9.5 flight hours per day, or about 2,625 hours per year. The Lockheed L-1011-500 consumed approximately 10,250 litres of fuel per hour, translating to around 0.188 kg per tonne kilometre. Direct operating costs were reported at approximately 4.5 USD per kilometre at Mach 0.83 in 1980 values, making operational economics a constant consideration for airlines.

Most operators deployed the Lockheed L-1011-500 in hub and spoke networks radiating from major international gateways. British Airways operated the type from London Heathrow, while Delta Air Lines centred operations on Atlanta. Pan Am used the variant from New York. The aircraft was well suited to high demand trunk routes but was rarely seen at secondary or regional airports, given its widebody dimensions and the runway lengths it required for maximum weight takeoffs.

Operators faced several challenges. The three engine configuration, while advantageous before ETOPS regulations were relaxed in the mid 1980s, became a liability as twinjet competitors such as the Boeing 767 and later the Airbus A330 gained extended range approval. Maintaining three Rolls Royce RB211 engines per airframe increased maintenance expenditure compared to twinjets. Direct maintenance costs, excluding engines, reached approximately 3,500 euros per flight hour. These economic pressures, combined with rising fuel prices, led most airlines to retire the type by the late 1990s or early 2000s.

Where the Lockheed L-1011-500 Operated

Across Europe, British Airways was the launch customer, inaugurating service on the London to Abu Dhabi route in May 1979. The airline also flew the variant on other long haul sectors from Heathrow. LTU International in Germany used the type for long range leisure services, while TAP Air Portugal operated a sizeable fleet of seven aircraft on transatlantic routes from Lisbon. EuroAtlantic Airways, also based in Portugal, employed the aircraft for ad hoc charter and wet lease operations. In North America, Delta Air Lines was the largest operator with 17 units, flying transatlantic services to Frankfurt, London Gatwick, Stuttgart, Shannon, Dublin and Hamburg, and later Pacific routes to Hawaii from 1984. Pan Am ordered 12 aircraft and launched New York to London Gatwick service in July 1980. Air Transat in Canada operated six aircraft on vacation charter routes from Toronto to Europe and the Caribbean. In Asia and the Middle East, Royal Jordanian was a notable operator with nine aircraft connecting Amman to Europe and North America, while BWIA West Indies Airways used its five aircraft on Caribbean and transatlantic routes. In Africa, TAAG Angola Airlines leased at least one aircraft from TAP Air Portugal for long haul services, though dedicated African operators of the type were rare.

• Europe: British Airways (8 aircraft, long haul from London Heathrow including Middle East and transatlantic sectors), TAP Air Portugal (7 aircraft, transatlantic from Lisbon to Brazil and North America), LTU International (3 aircraft, long range leisure charters from Germany), EuroAtlantic Airways (1 aircraft, ad hoc charter and wet lease), and the Royal Air Force (9 aircraft operated by No. 216 Squadron from RAF Brize Norton for tanker and VIP transport duties until 2014).
• North and South America: Delta Air Lines (17 aircraft, transatlantic and transpacific scheduled services from Atlanta), Pan Am (12 aircraft, transatlantic from New York), Air Transat (6 aircraft, leisure charters from Canada to Europe and the Caribbean), BWIA West Indies Airways (5 aircraft, Caribbean and transatlantic routes), and AeroPeru (initial customer for South American operations).
• Asia and the Middle East: Royal Jordanian (9 aircraft, long haul from Amman to Europe and North America) and Gulf Air (operated TriStar variants on Middle Eastern routes connecting the Gulf region to European and Asian destinations).
• Africa: TAAG Angola Airlines (leased aircraft from TAP Air Portugal for long haul services). Dedicated African operators of the Lockheed L-1011-500 remained limited.

Typical Seating Configurations

Cabin layouts on the Lockheed L-1011-500 varied considerably between network carriers and leisure operators. The aircraft featured a twin aisle fuselage approximately 5.77 metres wide, allowing flexible configurations. Delta Air Lines used a three class international layout seating 241 passengers: 12 first class sleeper seats in a 2+2+2 arrangement, 40 business class seats in a 2+4+2 layout, and 189 economy class seats in a 2+5+2 configuration. This premium heavy setup reflected Delta's focus on high yield transatlantic traffic.

A typical two class configuration, as documented for several operators, seated around 248 passengers with approximately 26 in business class and 222 in economy, predominantly in a 2+5+2 abreast arrangement at 33 inch (84 cm) pitch. Higher density layouts pushed capacity to around 310 seats, as seen on TAP Air Portugal aircraft configured with 19 club class and 291 economy seats. Charter and leisure operators tended to maximise seating to spread costs over more passengers on seasonal routes. In contrast, network carriers prioritised cabin comfort and premium class space for competitive long haul markets. For those interested in how European leisure airlines such as Edelweiss Air approach cabin configurations and pilot operations today, the contrast with these vintage widebody layouts is instructive. The full production list of all 50 Lockheed L-1011-500 airframes is available on Planespotters.net for reference.

The Lockheed L-1011 TriStar family, of which approximately 250 airframes were built between 1970 and 1984, accumulated millions of flight hours over three decades of commercial service. Across all variants, the Aviation Safety Network records 10 hull loss accidents and 540 fatalities as of the fleet's retirement from mainline passenger operations. The Lockheed L-1011-500, the shortened, longer range variant of which around 50 were produced, holds a notably clean record: no hull loss accidents and no fatal incidents have been attributed specifically to this sub type. Operators such as British Airways, Delta Air Lines, and the Royal Air Force flew the TriStar 500 on demanding long haul routes for nearly two decades without a single accident resulting in passenger fatalities.

When evaluating the overall L-1011 safety record, context matters. The TriStar entered service in an era when aviation safety standards, cockpit automation and crew training were still evolving rapidly. Several of the most significant L-1011 incidents involved earlier variants and became catalysts for sweeping industry reforms that continue to protect passengers today.

Notable Accidents and Their Safety Legacy

Eastern Air Lines Flight 401 (1972) remains one of the most studied accidents in aviation history. On 29 December 1972, an L-1011-1 crashed into the Florida Everglades during approach to Miami after the entire flight crew became fixated on a faulty nose gear indicator light. The autopilot had been inadvertently disconnected and no one monitored the aircraft's altitude. Of the 176 people on board, 99 lost their lives. The FAA investigation identified crew distraction and poor task allocation as the primary factors. This accident directly led to the development and eventual worldwide adoption of Crew Resource Management (CRM) training, fundamentally changing how flight crews communicate, delegate tasks and maintain situational awareness. It also prompted improvements to autopilot disconnect warnings and altitude alert systems on the TriStar and other aircraft.

Saudia Flight 163 (1980) involved an L-1011-200 that made an emergency landing at Riyadh after a fire broke out in the aft cargo compartment. Although the aircraft landed intact, a catastrophic delay in evacuation resulted in the loss of all 301 people on board. The tragedy accelerated FAA and ICAO mandates for improved cargo compartment fire detection, fire resistant cabin materials, floor proximity lighting and more rigorous crew training for emergency evacuations.

Delta Air Lines Flight 191 (1985) was an L-1011-1 that encountered a severe microburst on approach to Dallas/Fort Worth, crashing short of the runway and killing 137 people. The NTSB report (AAR 86/05) cited the crew's decision to continue the approach through a thunderstorm and the lack of real time wind shear information. This accident was a turning point for weather related safety: the FAA mandated onboard reactive wind shear warning systems on all commercial aircraft and funded the deployment of Terminal Doppler Weather Radar (TDWR) at major airports. Similar to how lessons from widebody operations shaped the safety protocols aboard aircraft like the Boeing 747 400, the reforms born from L-1011 incidents improved standards across the entire industry.

How Safe Is the Lockheed L-1011-500?

The TriStar was engineered with safety as a core design principle. It was the first widebody airliner to receive FAA certification for Category IIIc automatic landings, enabling fully automated touchdowns in near zero visibility conditions. Its design incorporated four independent hydraulic systems, an all flying tailplane (stabilator), Direct Lift Control for smooth and precise approaches, and an advanced Avionic Flight Control System (AFCS) that represented an early form of fly by wire technology. These features, documented in Lockheed's own technical profile for the L-1011-500, provided layers of redundancy that exceeded the standards of many contemporary types.

When accident rates are measured against the total number of flights, cycles and years in service, the L-1011 compares favourably with its direct competitor, the McDonnell Douglas DC-10, which experienced a higher number of hull losses from a larger production run. The L-1011-500 variant, with no recorded fatal accidents among its fleet, stands out as particularly reliable. Crucially, every major TriStar incident triggered measurable improvements in regulations, crew training and aircraft design that raised the safety bar for the entire commercial aviation sector. As global statistics from organisations such as the International Civil Aviation Organization (ICAO) consistently confirm, air transport remains one of the safest modes of travel, and the lessons drawn from the L-1011 programme played a meaningful part in reaching that standard.
