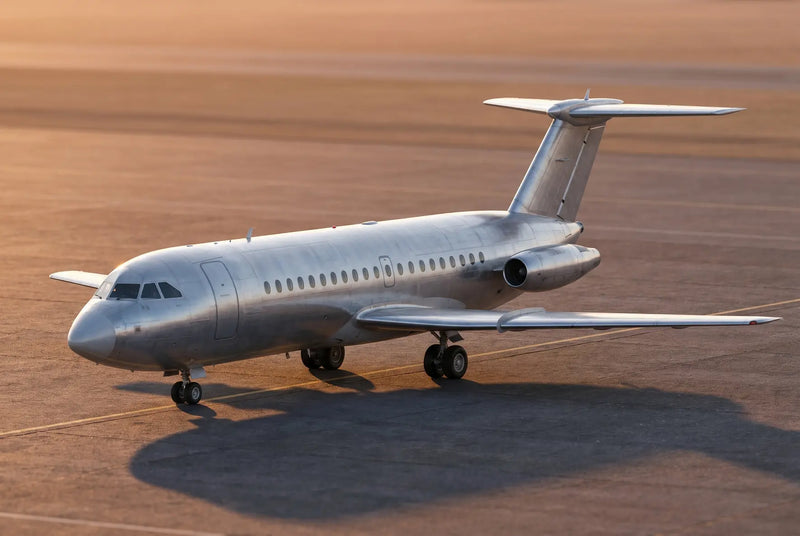

BAC One-Eleven 400 explained: design, use and legacy

The BAC One-Eleven family traces its origins to the Hunting H.107, a short-haul jet concept developed by Hunting Aircraft in the late 1950s. When Hunting merged into the newly formed British Aircraft Corporation (BAC) in 1960, the project was redesigned into a larger, twin-engined rear-fuselage layout that would become the One-Eleven. BAC aimed to fill a growing market gap for short-haul jet airliners capable of replacing turboprops on domestic and regional routes. The baseline Series 200 made its first flight on 20 August 1963 from Hurn Aerodrome, and production ultimately reached 244 aircraft across all variants, as documented by BAE Systems Heritage.

In May 1963, BAC publicly announced two new variants: the Series 300 and the BAC One-Eleven 400. Both models introduced the more powerful Rolls-Royce Spey Mk.511-14 turbofan engines, rated at 11,400 lbf of thrust, replacing the Spey Mk.506-14 (10,400 lbf) used in the Series 200. The upgraded powerplant permitted greater fuel capacity and extended range, allowing operators to serve a wider network of destinations. While the Series 300 was intended for international customers, the BAC One-Eleven 400 was developed specifically for the United States market, fitted with American standard avionics and instrumentation to meet FAA certification requirements.

A pivotal event early in the programme was the crash of prototype G-ASHG on 22 October 1963 near Chicklade, Wiltshire, during stall testing. The aircraft entered an unrecoverable deep stall, a phenomenon associated with T-tail configurations in which disturbed airflow from the stalled wing blankets the tailplane, rendering the elevators ineffective. All seven crew members on board lost their lives. The accident, widely documented as the first recognised deep stall event, prompted BAC to develop and install a stick pusher system that automatically lowered the nose before the aircraft could enter a critical angle of attack. This safety device became standard on all subsequent One-Eleven variants, including the Series 400, and influenced the design of future T-tail aircraft industry-wide.

In July 1963, American Airlines placed an initial order for 15 Series 400 aircraft. The airline later exercised options to bring its total fleet to 30 units, making it the largest single customer for the One-Eleven. American Airlines had been closely involved in shaping the Series 400 specification since the early 1960s, evaluating aspects such as maintenance costs, reliability, and cockpit layout to suit US operating practices. The Series 400 was originally configured with a maximum takeoff weight of 36,060 kg, somewhat lower than the Series 300's 40,000 kg, due to US regulatory restrictions that limited gross weight for two-crew flight deck operations. As those restrictions were later eased, US operators adopted the additional centre-section fuel tank already standard on the Series 300, effectively bringing the two models into alignment. American Airlines inaugurated BAC One-Eleven 400 service on 6 March 1966 with a flight from LaGuardia to Toronto, operating the type primarily on routes of 500 miles or less under the brand name Astrojet, as reported by Metro Airport News.

A total of 70 Series 400 airframes were built at BAC's facilities at Hurn and Weybridge. Many of these aircraft later found second careers in executive and cargo configurations after retiring from airline service.

What Distinguishes the BAC One-Eleven 400 from Other Variants

The Series 400 shared identical external dimensions with the Series 200 and 300, seating up to approximately 89 passengers in a five-abreast layout, with the same fuselage length and wingspan. Its primary distinction from the Series 300 lay not in airframe or engine changes but in the cockpit avionics and instrumentation, which were sourced from US manufacturers and configured to satisfy FAA standards rather than the British Air Registration Board (ARB) requirements. In contrast, the later Series 500, announced in 1967, featured a stretched fuselage accommodating up to 119 passengers, extended wingspan with redesigned tips, and more powerful Spey Mk.512 engines. The Series 475 combined the shorter Series 400 fuselage with the Series 500 wing and undercarriage, creating a variant optimised for operations from unpaved or rough-field airstrips.

The following list summarises the verified identifiers of the BAC One-Eleven 400:

• Engines: Two Rolls-Royce Spey Mk.511-14 turbofans, each producing 11,400 lbf of thrust with thrust reversers
• Maximum takeoff weight: 87,000 lb (39,460 kg) at full certification; initially restricted to 36,060 kg for US two-crew operations
• Range: Approximately 1,100 nautical miles with standard fuel
• Seating capacity: Up to 89 passengers (single-class, five-abreast)
• Cockpit avionics: US-sourced instruments and systems for FAA certification, distinguishing it from the otherwise similar Series 300
• Deep stall protection: Stick pusher system fitted as standard following the 1963 prototype accident
• Total built: 70 airframes

The BAC One-Eleven 400 was the US market derivative of the Series 300, sharing the same airframe dimensions but tailored with American avionics and instrumentation to meet the requirements of North American operators such as American Airlines, the type's largest customer. Designed for high frequency, short haul jet operations, the Series 400 paired a compact, structurally robust fuselage with rear mounted Rolls Royce Spey turbofans, keeping the wing clean for efficient low speed handling and simplified maintenance access. The variant inherited the One-Eleven family's five abreast cabin cross section and T tail configuration, while the uprated Spey Mk 511 engines gave it a meaningful thrust increase over the original Series 200, improving hot and high performance and enabling a higher maximum takeoff weight.

A total of 69 Series 400 aircraft were built. The initial MTOW was limited to 36,060 kg due to US two crew gross weight restrictions of the era, but this was later raised to approximately 40,000 kg, aligning it with the Series 300. That change, along with the addition of a centre section fuel tank, extended the aircraft's operational flexibility on longer domestic routes. For aviation enthusiasts interested in how later short to medium haul jets evolved from these early designs, a comparison with types like the Boeing 767 300 illustrates the dramatic leap in range, capacity, and efficiency across just a few decades of commercial aviation.

• Overall length: 93 ft 6 in (28.50 m)
• Wingspan: 88 ft 6 in (26.97 m)
• Height: 24 ft 6 in (7.47 m)
• Wing area: 980 sq ft (91 m²)
• Typical seating: 79 passengers in five abreast layout
• Engines: 2 × Rolls Royce Spey Mk 511 14, each rated at 50.7 kN (11,400 lbf) takeoff thrust
• MTOW: approximately 40,000 kg (88,185 lb), after US weight restriction was lifted
• OEW: approximately 22,100 kg (48,722 lb)
• MLW: 35,380 kg (78,000 lb)
• Fuel capacity: 2,235 Imperial gallons (10,160 litres) in integral wing tanks, plus 850 Imperial gallon (3,864 litres) centre section tank
• Max cruise speed: 476 kt (548 mph / 882 km/h) TAS at 21,000 ft
• Economical cruise speed: 440 kt (507 mph / 815 km/h) TAS at 25,000 ft
• Service ceiling: 35,000 ft (10,668 m)
• Range (max payload): approximately 1,480 nm (2,700 km)

Systems, Flight Controls, and Handling

The BAC One-Eleven 400 used fully powered hydraulic flight controls fed by two independent hydraulic systems, each backed up by AC electric pumps. In the event of a total hydraulic failure, the elevator could be controlled manually through a spring tab, providing a last resort reversion capability. This layered redundancy was considered advanced for a 1960s short haul jet. The flap system was designed so that asymmetric deployment was mechanically impossible: flaps were moved hydraulically but locked into position mechanically, eliminating the risk of split flap events that affected some contemporary types.

The Series 400 was distinguished from the Series 300 primarily by its avionics fit. Where the Series 300 carried British sourced instruments and navigation equipment, the 400 was equipped with US standard instruments and avionics at the request of American operators. Autopilot was available, and later upgrades on certain airframes introduced more advanced flight director systems. Stick shakers and stick pushers were integrated into the control column to provide stall warning and recovery assistance, a safety measure added after early flight test experience with deep stall behaviour on T tail designs.

Published performance figures for the One-Eleven 400 should always be interpreted in context. Actual range, takeoff distance, and payload capability varied considerably depending on operator chosen cabin density, specific MTOW option, atmospheric conditions (temperature, pressure altitude, wind), and runway surface state. The figures listed above represent typical manufacturer data under standard assumptions and may differ from the numbers in individual airline operating manuals.

Rolls Royce Spey Mk 511: The Engine Behind the Series 400

The Rolls Royce Spey is a low bypass turbofan (bypass ratio 0.64:1) that originated in the late 1950s as the RB.163, a scaled down derivative of the cancelled RB.141 Medway programme. The engine featured a two spool architecture with a five stage low pressure (LP) compressor, a twelve stage high pressure (HP) compressor, and two stage LP and HP turbines. It first ran in the early 1960s and entered airline service powering the BAC One-Eleven and Hawker Siddeley Trident, accumulating over 50 million flight hours across all variants.

The Series 200 used the Spey Mk 506, rated at 46.3 kN (10,410 lbf) per engine. For the Series 300 and 400, BAC and Rolls Royce moved to the uprated Spey Mk 511 14, delivering 50.7 kN (11,400 lbf), a roughly 10% thrust increase that improved climb performance and operational margins. The Mk 511 14 had a certified dry weight of 1,048.7 kg, a maximum takeoff turbine gas temperature of 585 °C, and was flat rated to ISA +7.5 °C. A further evolution, the Spey Mk 512 14DW producing 55.8 kN (12,550 lbf), later powered the stretched Series 500 and the hot and high optimised Series 475.

Beyond the One-Eleven family, the Spey 511 series powered the Gulfstream II and Gulfstream III business jets (where it was designated F113 RR 100 in US military service as the C 20). Military variants of the broader Spey family, designated RB.168, served in the British built McDonnell Douglas F 4 Phantom II (Spey Mk 202/203), the Blackburn Buccaneer, and the Hawker Siddeley Nimrod maritime patrol aircraft. A licence built version, the Allison TF41, was used in the LTV A 7 Corsair II. The Spey's core technology ultimately influenced the development of the Rolls Royce Tay, a higher bypass successor that itself re engined later One-Eleven airframes and powered the Fokker 70 and Fokker 100.

The BAC One-Eleven 400 was designed from the outset as a short haul workhorse, optimised for sectors typically not exceeding 500 miles (800 km) in length, although its still air range with maximum fuel reached approximately 2,165 miles (3,484 km) under standard conditions. Most revenue flights lasted between 45 minutes and two hours, connecting busy metropolitan airports with regional destinations. The aircraft's compact size and rear mounted Rolls Royce Spey Mk 511 engines allowed quick turnarounds at smaller terminals, making it well suited to high frequency shuttle style operations with multiple rotations per day.

The BAC One-Eleven 400 differed from the earlier Series 300 primarily in its avionics suite, which was configured with American instruments and equipment to meet North American certification requirements. With a maximum take off weight initially set at 36,060 kg (later raised to match the Series 300's 40,000 kg), the type could serve a broad mix of airfield types: major hub airports such as New York LaGuardia and London Gatwick, as well as secondary and regional airports across Europe, the Caribbean and South America. Operators deployed the type in both hub and spoke networks, where it fed larger aircraft at main bases, and on point to point routes linking city pairs with steady demand but insufficient traffic for widebody equipment.

Charter and inclusive tour carriers also favoured the BAC One-Eleven 400 for its ability to operate profitably on leisure routes of moderate length. In the United Kingdom, several independent airlines used the variant on seasonal services to European holiday destinations. Challenges for operators included the aircraft's relatively high cabin noise levels by later standards, limited cargo hold volume beneath the passenger floor, and growing pressure from tightening noise regulations that eventually curtailed operations at many airports from the late 1980s onward. Competition from newer types such as the Boeing 737 500 and the McDonnell Douglas DC 9 also eroded the commercial case for continued BAC One-Eleven 400 service.

Where the BAC One-Eleven 400 Operated

The BAC One-Eleven 400 saw service across four broad regions, reflecting the global appetite for affordable short haul jet travel during the 1960s, 1970s and 1980s. In Europe, the type anchored domestic and intra European scheduled networks, as well as inclusive tour charters to Mediterranean resorts. In North America, American Airlines became the single largest operator, deploying the variant on dense northeastern corridors. Across South America and the Caribbean, airlines used the BAC One-Eleven 400 on domestic trunk routes and inter island services. In Africa and Asia, smaller numbers served national carriers connecting capital cities with provincial airfields.

• Europe: British Airways operated 8 Series 400 aircraft, all named after locations in the English Midlands and based at Birmingham Airport for regional services. Dan Air flew 5 Series 400 units on a mix of scheduled routes and charter flights from London Gatwick, eventually making the One-Eleven its principal revenue generator in the 1980s. Cambrian Airways used 4 Series 400 aircraft on routes linking Wales and England before merging into British Airways in 1976. Court Line (formerly Autair International) operated 3 Series 400 aircraft on inclusive tour charters to European leisure destinations. Channel Airways flew 3 Series 400 units before ceasing operations in 1972. British Air Ferries used 2, Air UK operated 4, and Air Manchester flew 2 Series 400 aircraft on regional services. British United Airways and British Caledonian Airways each operated 1 Series 400 alongside larger fleets of other One-Eleven variants.
• North & South America: American Airlines was the dominant customer with 30 Series 400 aircraft, initially configured with 63 seats in a mixed class layout before transitioning to 69 and 74 seat arrangements. The fleet was primarily based at New York LaGuardia and served destinations including Boston, Buffalo, Cleveland, Detroit, Hartford, Philadelphia, Rochester, Syracuse, Toronto and Washington National, on routes generally under 500 miles. Braniff Inc. operated 3 Series 400 aircraft on domestic US routes. Quebecair in Canada flew 3 Series 400 units. In South America, Austral Líneas Aéreas of Argentina operated 6 Series 400 aircraft on domestic services, Faucett Perú used 2, and VASP of Brazil flew 2 on internal routes. In the Caribbean, Bahamasair operated 4 Series 400 aircraft on inter island and Florida services.
• Asia: Philippine Airlines operated 4 Series 400 aircraft on domestic routes across the Philippine archipelago, complementing a larger fleet of Series 500 units for longer sectors.
• Africa: Air Malawi operated 2 Series 400 aircraft on domestic and regional routes within southern Africa. ADC Airlines of Nigeria flew at least 1 Series 400 on West African services.

Typical Seating Configurations on the BAC One-Eleven 400

The BAC One-Eleven 400 featured a circular cross section fuselage 93 ft 6 in (28.5 m) long, with a cabin width of 126 inches (3.20 m). Seats were arranged five abreast in a 3+2 layout divided by a single aisle, a configuration common to short haul jets of the era. The maximum single class capacity was 89 passengers, though most operators chose lower density layouts for comfort and service flexibility.

Network carriers offering mixed class service typically fitted fewer seats. American Airlines initially configured its fleet with 63 seats in a two class arrangement, later increasing to 69 and then 74 seats as demand patterns evolved. British Airways used its Series 400 fleet in domestic economy layouts suited to short sectors from Birmingham. Charter and inclusive tour operators such as Court Line and Dan Air favoured denser seating, with configurations reported at around 84 seats in an all economy layout at tighter pitch. The standard seat pitch ranged from approximately 31 to 34 inches in economy, while two class options offered up to 38 inches in the forward cabin. These variations reflected the versatility of the BAC One-Eleven 400 cabin, which could be adapted to suit both scheduled network operations and high density leisure services.

The BAC One-Eleven 400 compiled a relatively modest accident record over a service life spanning more than two decades. Of the 70 Series 400 airframes produced, most were delivered from 1965 onward to carriers such as American Airlines, Braniff, Mohawk Airlines and TAROM. A small number were later converted for corporate or charter use. Across the broader BAC 1-11 fleet of 244 aircraft, the type accumulated millions of flight hours on short haul routes in Europe, North America, Africa and beyond. Within the 400 series specifically, two hull loss accidents with fatalities have been documented, both involving diversions in adverse weather rather than structural or design failings of the airframe itself. When measured against the total hours and cycles flown by the variant, this record is broadly in line with the generation of early short haul jets that entered service during the 1960s.

Notable Accidents and Incidents Involving the BAC One-Eleven 400

On 7 December 1970, a TAROM BAC One-Eleven 424EU (registration YR-BCA) operating from Tel Aviv to Bucharest was diverted to Constanța due to poor weather at the destination. During the approach in fog and low visibility, the crew descended below the minimum descent altitude. The aircraft struck the ground approximately 5 km short of the runway and was destroyed. Of the 27 occupants, 19 lost their lives and eight survived with injuries. The investigation pointed to controlled flight into terrain (CFIT) during a non precision approach in instrument meteorological conditions, underscoring the need for stricter adherence to minimum descent altitudes and improved approach procedures.

On 26 June 1991, an Okada Air BAC One-Eleven 402AP (registration 5N-AOW) operating a domestic Nigerian service diverted to Sokoto Airport because of heavy rain at its intended destination. After circling for an extended period without locating the airfield, the aircraft exhausted its fuel supply. The crew attempted a forced landing in an open field roughly 6 km east of the airport. The undercarriage was torn away on contact, and the fuselage broke apart as it slid across the terrain. Four of the 48 passengers were killed; the remaining passengers and all five crew members survived, though many sustained injuries. This event highlighted the critical importance of fuel management and diversion planning, especially in regions where navigational aids and airport infrastructure may be limited.

While the two accidents above involved the 400 series directly, two incidents from the wider BAC 1-11 family had a lasting influence on the type's design and operating culture. In October 1963, the BAC One-Eleven prototype entered an unrecoverable deep stall during flight testing and crashed, killing all crew on board. The T-tail configuration allowed disturbed airflow from the stalled wings to blanket the horizontal stabiliser, rendering the elevators ineffective. This tragedy led to the introduction of stick shaker stall warning systems, aerodynamic strakes along the rear fuselage and revised flight test protocols that influenced certification standards for all T-tail jets. In June 1990, British Airways Flight 5390, a BAC 1-11 Series 500, suffered an explosive cockpit windscreen failure at 17,000 feet after incorrect bolts had been fitted during maintenance. The captain was partially ejected but held by cabin crew while the co-pilot landed safely at Southampton with no fatalities. The UK Civil Aviation Authority subsequently mandated stricter maintenance inspection regimes, revised bolt specification standards and improved supervisor oversight for safety critical tasks across the fleet.

How Safe Is the BAC One-Eleven 400?

Assessing the safety of the BAC One-Eleven 400 requires context. The variant's two fatal hull losses over roughly 25 years of active service, within a fleet of 70 airframes, reflect operational risks that were not uncommon among first generation short haul jets. Both documented accidents resulted primarily from procedural or environmental factors rather than from inherent weaknesses in the aircraft's structure or systems. The deep stall remediation programme that followed the 1963 prototype loss ensured that production One-Elevens benefited from stick shaker warnings, improved aerodynamic devices and conservative handling limits. Operators such as American Airlines, which flew 30 Series 400 aircraft on high frequency domestic routes, did so without a fatal hull loss. The BAC 1-11 400 was also subject to continuous oversight from regulatory authorities including the UK CAA and the U.S. Federal Aviation Administration (FAA), both of which issued airworthiness directives throughout the type's career. Like other aircraft of similar vintage, safety outcomes depended heavily on operator standards, crew training and maintenance discipline. Freighter operations on different aircraft types, such as the Boeing 757 200PF, later inherited many of the procedural improvements first driven by incidents on earlier short haul types. Overall, the BAC One-Eleven 400's safety profile was consistent with its era, and the lessons drawn from its operational history contributed meaningfully to the continuous advances that make commercial aviation one of the safest forms of transport in the world today.
