Lockheed L-749 Constellation: history, roles, and data

The Lockheed L-749 Constellation, widely known as the "Connie," emerged in the late 1940s as a pivotal long range variant within one of aviation's most celebrated aircraft families. Its story begins in the late 1930s, when Transcontinental & Western Air (TWA) shareholder Howard Hughes approached the Lockheed Aircraft Company with a bold request: a pressurised, high speed, four engine airliner capable of crossing the United States nonstop. Lockheed, founded by Allan Loughead in 1926 and headquartered in Burbank, California, accepted the challenge and began developing what would become the Constellation family.

The original L-049 Constellation made its maiden flight on 9 January 1943, but wartime priorities meant the first aircraft were delivered to the United States Army Air Forces as C-69 military transports. After the war ended, surplus C-69s entered civilian service, and Lockheed moved to develop improved commercial variants. The L-649, introduced in 1946, was the first purpose built civil Constellation, featuring more powerful Wright engines and redesigned engine nacelles to address earlier overheating issues. However, the L-649's range remained insufficient for reliable nonstop transatlantic operations, prompting Lockheed to develop the L-749 as a direct evolution.

The Lockheed L-749 Constellation first flew on 14 March 1947 and received its airworthiness certification less than two weeks later. Air France took delivery of the first production aircraft on 18 April 1947, making it the launch operator of the variant. Pan American World Airways followed in June 1947, using its new L-749 fleet to inaugurate around the world scheduled service, a landmark achievement in commercial aviation. Other major operators included TWA, KLM, Eastern Air Lines, South African Airways, Cubana de Aviación, and Avianca.

Production of the L-749 series totalled 119 aircraft: 60 standard L-749 airframes and 59 of the improved L-749A sub variant. The L-749A, introduced in 1949, featured a reinforced fuselage and strengthened landing gear to accommodate a higher maximum takeoff weight of 107,000 lb (48,534 kg). Notably, 10 L-749A airframes were ordered by the United States Air Force as C-121A military transports, serving the Military Air Transport Service as VIP aircraft for senior military and diplomatic officials. This military order proved critical in sustaining the Constellation production line at Lockheed's Burbank plant during a period of reduced civilian demand in the late 1940s. Production of L-749 variants concluded around 1951, after which Lockheed shifted focus to the larger and more powerful L-1049 Super Constellation. Much as the Connie represented a leap for propeller driven airliners, later generations of narrowbody jets would transform air travel in subsequent decades, as seen with types like the McDonnell Douglas MD-90-30.

What Differentiated the Lockheed L-749 from the L-649 and L-749A

The central improvement of the L-749 over the preceding L-649 was a significant increase in fuel capacity. The L-749 carried approximately 6,245 US gallons of fuel, compared to the L-649's roughly 4,690 US gallons, thanks to additional tanks installed in the outer wing sections. This added approximately 1,130 US gallons and extended the maximum range to roughly 4,995 miles, a gain of about 1,000 miles over the L-649. The extra fuel weight required a stronger undercarriage with reinforced tires, and the L-749 also introduced weather radar as standard equipment. Aerodynamic refinements included jet stack exhaust manifolds on the engines, which contributed to a speed increase of approximately 15 mph. Both the L-649 and L-749 shared the same four Wright R-3350-749C18BD-1 Duplex Cyclone 18 cylinder radial engines, each rated at approximately 2,500 hp for takeoff.

The L-749A sub variant went further by reinforcing the fuselage structure and landing gear to raise the maximum takeoff weight. Many earlier L-649 airframes were eventually retrofitted to L-749A standards, underscoring the popularity and operational benefits of the longer range configuration. On 5 February 1949, an Eastern Air Lines L-749A (registration N115A) set a transcontinental speed record by flying from Los Angeles to New York's LaGuardia Airport in 6 hours 17 minutes and 39 seconds, averaging approximately 392 mph.

The following list summarises the key variant identifiers of the Lockheed L-749 Constellation:

• Engines: Four Wright R-3350-749C18BD-1 Duplex Cyclone radials (~2,500 hp each)
• Fuel capacity: Approximately 6,245 US gallons (+1,130 over L-649)
• Maximum range: Approximately 4,995 miles (max fuel configuration)
• Passenger capacity: 60 to 81, depending on cabin layout
• Maximum takeoff weight: Up to 107,000 lb (48,534 kg) for the L-749A
• Maximum continuous speed: 555 km/h (345 mph) at 4,260 m altitude
• Key structural changes vs. L-649: Enlarged wing fuel tanks, reinforced landing gear and tires, weather radar, jet stack exhaust manifolds
• Production: 60 L-749 and 59 L-749A built (119 total); 10 additional C-121A for USAF

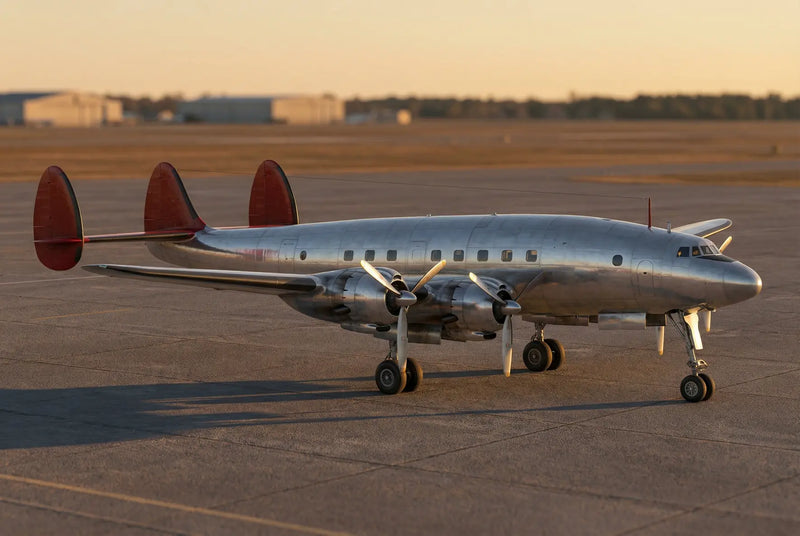

The Lockheed L-749 Constellation was developed as a pressurized, long range airliner purpose built for nonstop transatlantic and intercontinental services. Evolving directly from the L-649, the L-749 retained the same iconic triple tail fuselage and low wing monoplane layout but added approximately 1,130 US gallons of additional fuel capacity, bringing the total to around 6,245 US gallons. This trade off prioritized range over payload: with maximum fuel, the aircraft could cover nearly 5,000 miles, while maximum payload range dropped to roughly 2,600 miles. The design inherited Lockheed's flush riveted, stressed skin wing construction and Fowler flaps, paired with a retractable tricycle landing gear that was modern for its era.

Operators such as TWA, Pan American, Air France, and KLM deployed the L-749 on prestige routes where reliable oceanic range was critical. The aircraft typically seated between 60 and 81 passengers depending on cabin configuration, with a crew of six to eight including captain, copilot, flight engineer, radio operator, and cabin attendants. Airlines flying challenging long haul operations, much like those described in our overview of Red Wings Airlines pilot conditions, demanded robust crew coordination and systems management on every sector.

• Wingspan: 123 ft (37.49 m)
• Length: 97 ft 4 in (29.67 m)
• Height: 22 ft 5 in (6.83 m)
• Wing area: approximately 1,650 sq ft (153 m²)
• Empty weight: 56,590 lb (25,669 kg)
• Maximum takeoff weight (MTOW): 107,000 lb (48,534 kg)
• Maximum payload: approximately 20,270 lb (9,195 kg)
• Cruise speed: 320 mph (280 kn) in normal cruise conditions
• Maximum speed: 345 mph (300 kn)
• Range: 4,995 mi (4,341 nmi) with maximum fuel; approximately 2,600 mi with maximum payload
• Service ceiling: 24,100 ft (7,300 m)
• Rate of climb: 1,140 ft/min
• Engines: 4 × Wright R-3350 749C18BD-1 Duplex Cyclone radial piston engines, each rated at 2,500 hp for takeoff
• Propellers: 4 × Hamilton Standard 3 blade constant speed, fully feathering, reversible pitch, 15 ft (4.57 m) diameter
• Fuel capacity: 6,245 US gallons
• Passenger capacity: 60 to 81, depending on layout
• Crew: 6 to 8

Systems, Flight Controls, and Handling

The L-749 relied on conventional hydraulic flight controls, standard for transport aircraft of the late 1940s. No fly by wire or digital augmentation existed; pilots managed control surfaces directly through mechanical linkages assisted by hydraulic boosters. The Fowler flap system provided effective high lift for approach and landing, with documented stall speeds as low as 91 mph (147 km/h) in the full flaps, normal landing weight configuration. The aircraft's triple vertical stabilizer design improved directional stability and allowed the Constellation to fit into existing hangars with limited door height.

The flight engineer's station was a defining feature of Constellation operations. The flight engineer monitored and managed all four engines, fuel system distribution across multiple tanks, cabin pressurization, hydraulics, and electrical systems. Engine control was achieved through throttle, mixture, and propeller RPM levers, with the flight engineer adjusting cowl flaps for cylinder head temperature management. Performance computations were manual, based on tabulated data in the flight manual, accounting for weight, temperature, altitude, and wind.

Published performance figures for the L-749 can vary significantly between sources. Differences stem from operator specific modifications, cabin density choices affecting operating empty weight, atmospheric assumptions (ISA versus hot and high conditions), runway surface and slope, and whether figures represent manufacturer ideals or airline operational data. Range numbers, for instance, shift dramatically depending on whether they assume maximum fuel with minimal payload or full passenger load with reserve requirements. Any comparison should account for these variables rather than treating published numbers as absolutes.

Wright R-3350 Duplex Cyclone: The Powerplant Behind the Constellation

The L-749 was powered by four Wright R-3350 Duplex Cyclone engines, specifically the 749C18BD-1 variant. This was an air cooled, twin row, 18 cylinder radial piston engine with a total displacement of 3,350 cubic inches (54.9 litres). On the L-749, each engine delivered 2,500 hp at takeoff and approximately 2,100 hp in continuous cruise operation.

Developed by Wright Aeronautical, a division of Curtiss Wright Corporation, the R-3350 first ran on the bench in May 1937 and entered flight testing in the early 1940s. Early variants suffered from serious overheating and reliability problems, particularly during wartime service on the Boeing B-29 Superfortress. Persistent engineering improvements through the 1940s resolved many of these issues, and by the time the L-749 entered airline service, the engine had matured into a more dependable powerplant. The R-3350's compression ratio was 6.85:1, and it ran on 100/130 octane aviation fuel, with a gear driven supercharger providing altitude performance.

Beyond the Constellation family, the R-3350 engine family powered a wide range of military and civil aircraft. The Boeing B-29 Superfortress and its successor the B-50 were perhaps its most famous military applications. The Lockheed P2V Neptune maritime patrol aircraft, the Douglas A-1 Skyraider, and the Fairchild C-119 Flying Boxcar also used variants of this engine. In commercial aviation, the later turbo compound versions of the R-3350, delivering up to 3,250 hp or more, powered the Douglas DC-7 and the Lockheed L-1049 Super Constellation. Horsepower across the R-3350 family ranged from approximately 2,200 hp in early models to over 3,500 hp in the most advanced turbo compound variants, making it one of the most powerful and widely used radial engines in aviation history.

The Lockheed L-749 Constellation was the first variant of the Constellation family certified for regular nonstop transatlantic crossings. Powered by four Wright R-3350 Duplex-Cyclone radial engines producing 2,500 hp each, the aircraft offered a maximum range of approximately 4,995 miles (8,039 km) on full fuel and a cruise speed of 320 mph (515 km/h). These figures translated into transatlantic sectors of roughly 12 to 18 hours depending on headwinds and routing, enabling airlines to link North America to Europe with far fewer intermediate stops than predecessor types like the Douglas DC-4.

Typical missions for the Lockheed L-749 Constellation centred on long haul, point to point international services. Airlines scheduled one or two long sectors per day, with overnight ground time reserved for engine inspections and airframe maintenance. Because the aircraft required well maintained paved runways, it operated almost exclusively from major international airports such as New York Idlewild (now JFK), London Heathrow, Paris Orly, and Bombay Santa Cruz. Hub and spoke networks were not yet standard in the late 1940s; instead, most operators ran linear point to point routes connecting capital cities, often with refuelling stops at airports like Gander (Newfoundland), Shannon (Ireland), or Cairo.

Operators faced notable challenges. The Wright R-3350 engines were prone to overheating, particularly in the rear cylinders, and early time between overhauls could be as low as a few hundred hours, driving up maintenance costs. High wheel pressure limited the type to airports with paved surfaces, ruling out secondary or unprepared airfields. Fuel consumption was significant, and strong headwinds on eastbound Atlantic crossings could force diversions or additional fuel stops. Despite these constraints, the Lockheed L-749 Constellation represented a transformative step for postwar commercial aviation, dramatically cutting journey times on intercontinental routes. Pilots and flight engineers had to monitor engine temperatures closely throughout each sector, making crew competency a critical factor in safe operations.

Where the Lockheed L-749 Constellation Operated

Between 1947 and the mid 1950s the Lockheed L-749 Constellation served airlines across four broad regions. In Europe, carriers deployed it primarily on prestige transatlantic routes linking cities such as Paris, Amsterdam, and London to New York. In North and South America, the type flew both transcontinental domestic sectors and international services to the Caribbean and South America. In Asia, it opened long haul connections between the Indian subcontinent and Europe. In Africa, it appeared on intercontinental routes linking the southern part of the continent to European capitals. A total of 119 L-749 and L-749A airframes were built, serving a wide roster of flag carriers and independent operators.

• Europe: Air France received the first L-749 in April 1947 and used it to inaugurate regular nonstop transatlantic flights between Paris and New York. KLM Royal Dutch Airlines introduced the type on its Amsterdam to New York services in the same period. Both carriers relied on the Lockheed L-749 Constellation as a flagship aircraft on their most prestigious long haul routes before transitioning to the later Super Constellation.
• North and South America: Trans World Airlines (TWA) was a launch operator and became the largest customer, eventually operating 26 L-749A airframes on transatlantic and transcontinental routes until 1967. Pan American World Airways received its first L-749 in June 1947 and used the type on its historic Round The World service, departing San Francisco aboard Clipper America on 17 June 1947. Eastern Air Lines operated the type on domestic US sectors, while Cubana de Aviación, Avianca, and Línea Aeropostal Venezolana flew L-749s on Caribbean and South American routes.
• Asia: Air India International took delivery of three L-749 aircraft and inaugurated its Bombay to London service via Cairo and Geneva on 8 June 1948 aboard the Malabar Princess (VT-CQP), covering approximately 5,000 miles. The airline initially operated weekly frequencies, expanding to five flights per fortnight by 1950.
• Africa: South African Airways became the first civil customer for the reinforced L-749A subvariant and deployed it on intercontinental services connecting Johannesburg to Europe.

Typical Seating Configurations

Cabin layouts on the Lockheed L-749 Constellation varied considerably by operator and mission. In a standard configuration the pressurised cabin accommodated between 60 and 81 passengers in a five abreast arrangement (3+2) across roughly 12 rows, with a cabin width of approximately 3.3 m (11 ft). High density layouts could seat up to 87 passengers in 17 rows.

Airlines operating long haul overnight services, such as TWA and Pan Am, often fitted sleeper berths and lounge areas, reducing total capacity to around 40 to 60 seats but offering a far more comfortable experience. First class only configurations included reclining seats, a ladies' powder room, a men's dressing room, and forward lounge space. Shorter haul or charter operators tended to maximise seating density, approaching the 81 to 87 seat ceiling. There was no standardised two class split comparable to modern economy and business cabins; instead, operators tailored each interior to the route, with premium transcontinental and transatlantic layouts carrying fewer passengers at higher fares and regional or repositioning flights filling more seats at lower yields.

The Lockheed L-749 Constellation entered airline service in the late 1940s, with approximately 60 airframes built by Lockheed at its Burbank, California plant. Operated by major carriers such as TWA, Air France, KLM, Air India and Eastern Airlines, the L-749 served on long haul intercontinental routes for over a decade before being progressively replaced by later piston and jet powered types. According to the Bureau of Aircraft Accidents Archives (B3A), the type accumulated at least 11 hull loss events throughout its operational life. While that figure may appear high by modern standards, it must be considered within the context of 1940s and 1950s aviation, when navigation aids were rudimentary, cockpit instrumentation was limited, radar coverage was sparse and standardised crew resource management did not yet exist. Most piston era airliners, including the Douglas DC 4 and DC 6, experienced comparable loss rates during the same period.

Notable Accidents Involving the L-749 Constellation

Several accidents involving the L-749 Constellation stand out for their impact on the industry and on subsequent safety practices.

• Air France Flight 009 (October 1949) – A Lockheed L-749 (F-BAZN) operating from Paris to New York struck the slopes of Mt. Redondo on São Miguel Island in the Azores, killing all 48 occupants. The crew had reported the airport in sight, but investigators determined the aircraft was approximately 60 miles off course. The investigation pointed to controlled flight into terrain caused by inadequate navigation, possible direction finding equipment failure, crew overconfidence in visual conditions at night and failure to follow approach procedures. The accident underscored the dangers of relying on visual references during nocturnal oceanic approaches and reinforced calls for improved radio navigation aids at remote airfields.
• KLM Constellation near Bombay (July 1949) – KLM Lockheed L-749 (PH-TDF) crashed into a hill near Bombay (now Mumbai) during approach, killing all 45 people on board. The primary factor was identified as pilot error, with the crew descending below the safe altitude in poor visibility. This tragedy highlighted the need for more rigorous approach procedures and better terrain awareness protocols on routes serving airports surrounded by high ground.
• Air India Flight 245, Malabar Princess (November 1950) – An Air India L-749A Constellation (VT-CQP) struck the Rocher de la Tournette on the western face of Mont Blanc at approximately 4,677 metres while en route from Cairo to Geneva. All 48 occupants perished. Investigators concluded that the crew misidentified their position, believing they were over Grenoble while actually being 111 km to the northeast, directly in the path of the Alps. The absence of radar coverage at Geneva and limited navigation aids along the chosen routing were contributing factors. The accident drew attention to the hazards of Alpine route navigation and contributed to calls for reliable radar surveillance and improved navigational infrastructure in mountainous regions.
• TWA Flight 903 (August 1950) – A TWA Lockheed L-749 (N6004C) crashed near Wadi Natrun, Egypt, after an engine fire caused by a failed rear master rod bearing in engine number three. All 55 people on board lost their lives. The root cause was traced to sludge buildup in the crankpins blocking oil flow, which led to overheating and catastrophic engine failure. The accident prompted improvements in oil screens, the introduction of crankpin plugs and revised oil change intervals for the Wright R 3350 engines used on the Constellation family.

How Safe Is the Lockheed L-749 Constellation?

Evaluating the safety of the L-749 Constellation requires historical perspective. The aircraft operated during a transitional era when the aviation industry was still establishing the regulatory frameworks, training standards and technological safeguards that define modern air travel. Controlled flight into terrain, engine fires and navigational errors were not unique to the Constellation; they were systemic challenges shared across all piston era airliners. Each major accident contributed lessons that shaped the evolution of minimum safe altitudes, cockpit instrumentation, engine maintenance protocols and approach procedures. In its day, the L-749 represented a significant engineering achievement, offering pressurised cabins and transatlantic range at a time when competitors like the Bristol Brabazon never progressed beyond the prototype stage.

By the standards of the late 1940s and 1950s, the Constellation's safety record was broadly comparable to that of other long range piston powered transports. Organisations such as the Aviation Safety Network maintain comprehensive databases that place these historical accident rates in context. Since the era in which the L-749 flew, global aviation safety has improved dramatically. Modern commercial flying benefits from redundant digital systems, satellite navigation, terrain awareness and warning systems, and rigorous crew resource management training. Aviation remains, statistically, one of the safest modes of transport, and the lessons drawn from aircraft like the L-749 Constellation played an important role in reaching that standard.
