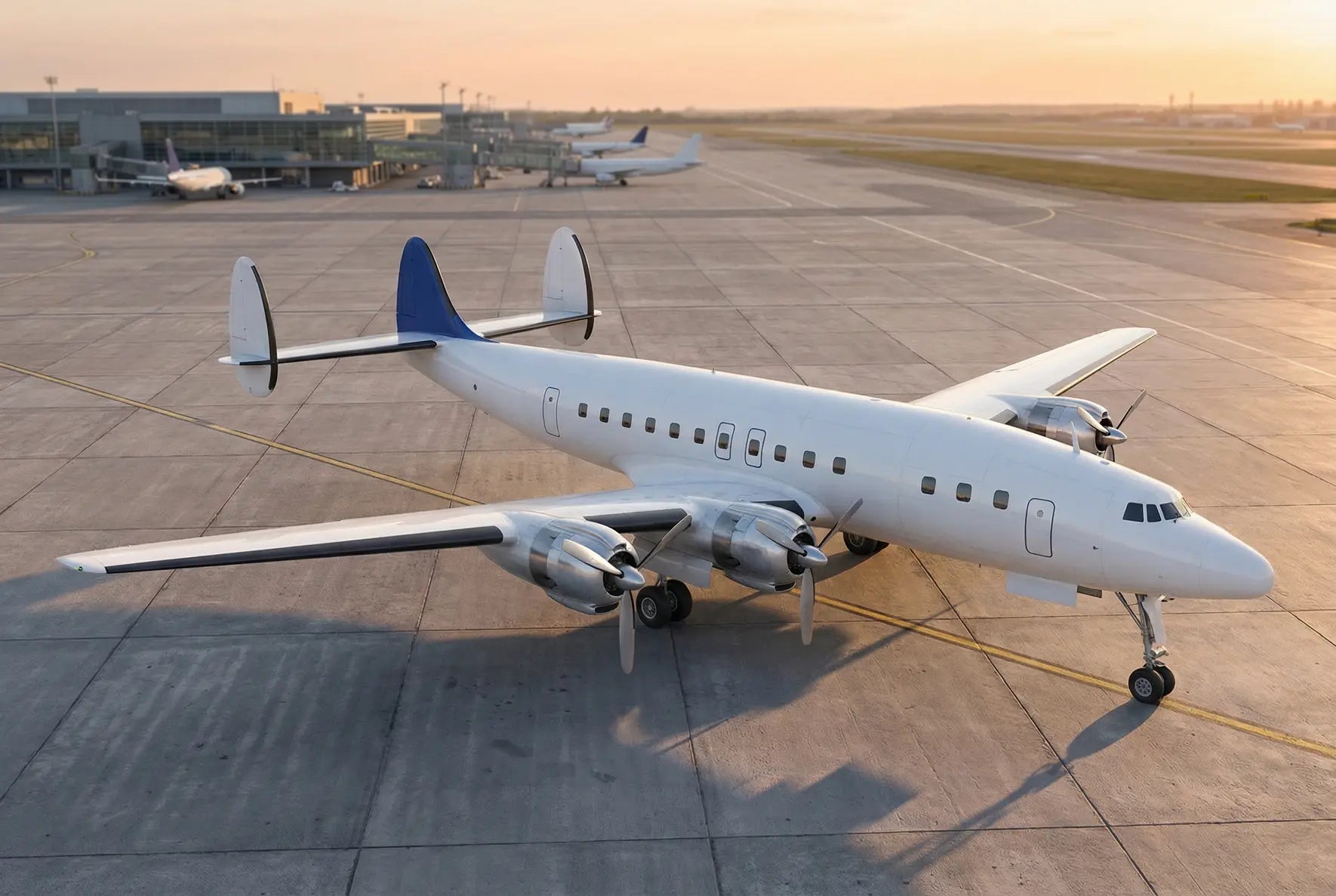

Lockheed L-1649 Starliner: the last long-range Constellation

The Lockheed L-1649 Starliner represented the final and most ambitious chapter in the storied Lockheed Constellation family of four engine pressurized airliners. Produced by the Lockheed Corporation at its Burbank, California plant, the Starliner was conceived to deliver true nonstop transatlantic range for commercial operators, an achievement that had eluded all previous Constellation variants. Its development was driven by intense competition with Douglas Aircraft, whose DC-7C Seven Seas had already entered service in June 1956 and was winning orders from major carriers on long haul routes.

The road to the L-1649 was not straightforward. Before settling on the Starliner design, Lockheed explored two turboprop powered proposals. The L-1449 concept envisioned a stretched airframe fitted with four Pratt & Whitney PT2G-3 turboprop engines producing approximately 5,500 hp each. Although TWA initially placed an order, Lockheed concluded that the heavy nacelle containment structures required for turboprops made the design impractical. A follow on proposal, the L-1549, substituted Allison turboprop engines but was similarly rejected by prospective operators as financially unviable. Both projects were abandoned, and Lockheed pivoted to a piston engine solution that would leverage the proven Wright R-3350 Turbo Compound powerplant.

In 1955, TWA formally requested Lockheed to develop a long range variant capable of competing directly with the DC-7C on transatlantic services. Lockheed responded with the L-1649A, retaining the L-1049G Super Constellation fuselage but mating it to an entirely new, thin profile wing. The prototype (constructor number 1001, registration N60968) completed its maiden flight on 10 October 1956 at 4:15 p.m. from Lockheed Air Terminal in Burbank. Test pilots Herman R. Salmon and Roy W. Wimmer, along with flight engineers Glenn Fisher and John Stockdale, conducted the 50 minute inaugural sortie, lifting off after a 20 second ground run at a gross weight of 156,000 pounds. The aircraft received FAA type certification (TCDS 4A17), and the first production L-1649A (c/n 1002, N7301C) was delivered to TWA, which branded the type Jetstream.

The Starliner entered revenue service with TWA on 1 June 1957, operating long haul transatlantic routes. Air France took delivery of its aircraft and applied the name Starliner, while Lufthansa operated four examples under the name Super Star. A remarkable demonstration of the type's capabilities came on 29 September 1957, when a TWA L-1649A completed a nonstop flight from Los Angeles to London covering 5,420 miles in 18 hours and 32 minutes at an average speed of 292 mph, establishing what was then the longest duration nonstop passenger flight by a piston engine airliner. For flight crews, managing these ultra long range sectors in an unpressurized cockpit environment with four complex turbo compound engines demanded rigorous preparation and procedural discipline, especially when encountering adverse weather on oceanic crossings.

A total of 44 L-1649A Starliners were built between 1957 and 1958. TWA was the largest customer with 29 airframes (including four originally destined for LAI of Italy after its merger with Alitalia). Air France acquired 10, and Lufthansa four. Varig of Brazil initially ordered two but switched to the L-1049G for fleet standardisation. The type's commercial career was remarkably brief. The arrival of the Boeing 707 and Douglas DC-8 jet airliners from 1958 onward rapidly rendered piston engine transatlantic operations uneconomical. Most Starliners were retired from frontline passenger service within just a few years, with several converted for cargo operations or sold to smaller operators before eventual withdrawal.

What Distinguishes the L-1649A Starliner from the L-1049 Super Constellation

While the Starliner shared the L-1049G's distinctive triple tail fuselage, it was in many respects a different aircraft from the wing roots outward. The most significant change was the completely redesigned wing. Where the L-1049G featured a wing spanning approximately 123 feet (37.5 m) with a relatively thick profile inherited from earlier Constellation models, the L-1649A introduced an all new wing with a 150 foot (45.72 m) wingspan and a 16% thinner airfoil section using NACA profiles. This wing incorporated integral fuel tanks extending all the way to squared off wingtips, dramatically increasing fuel capacity to approximately 9,600 US gallons (36,340 litres). The thinner wing reduced aerodynamic drag at cruising altitudes and allowed engines to be mounted farther from the fuselage, which meaningfully reduced cabin noise and vibration.

The powerplant was also upgraded. All production Starliners used the Wright R-3350 988TC18EA-2 Turbo Compound eighteen cylinder radial engine, a more powerful and refined iteration than the R-3350 DA series used on the L-1049G. Each engine produced 3,400 hp for takeoff at 2,900 rpm and featured exhaust driven power recovery turbines that contributed additional thrust through a 6.52:1 gear reduction to the crankshaft. These engines drove 16 foot 10 inch three bladed Hamilton Standard constant speed propellers. Despite these advances, the Turbo Compound engines were notoriously complex and required intensive maintenance, contributing to high operating costs that further weakened the Starliner's position against emerging jet competition.

Structurally, the L-1649A featured a slightly longer nose section (approximately 0.78 m or 30 inches more than the L-1049G) to accommodate an improved weather radar radome. The main landing gear retracted into the inner engine nacelles rather than into the wing surface, eliminating drag inducing gear doors and permitting a cleaner wing structure. Maximum takeoff weight rose to approximately 156,000 lb (70,760 kg), and the aircraft could carry between 58 and 99 passengers depending on cabin configuration.

The following list summarises the key variant identifiers that distinguish the L-1649A Starliner from its Constellation predecessors:

• Wing: all new design with 150 ft span, NACA thin profile airfoils, integral fuel tanks to wingtips, squared wingtips
• Engines: four Wright R-3350 988TC18EA-2 Turbo Compound radials, each rated at 3,400 hp for takeoff
• Fuel capacity: approximately 9,600 US gallons (36,340 litres), enabling ranges up to 6,180 statute miles
• Maximum takeoff weight: approximately 156,000 lb (70,760 kg)
• Fuselage: based on L-1049G with extended nose radome (approximately 0.78 m longer)
• Landing gear: main gear retracting into inner engine nacelles for reduced wing drag
• Passenger capacity: 58 to 99, depending on layout
• Service ceiling: approximately 23,700 ft (7,224 m)

The Lockheed L-1649A Starliner was engineered for one primary mission: nonstop transatlantic range that could finally connect the United States west coast to Europe without fuel stops. To achieve this, Lockheed retained the proven pressurised fuselage of the L-1049G Super Constellation but designed an entirely new, thinner profile wing spanning 150 ft (45.72 m) with integral fuel tanks extending to the wingtips. This gave the Starliner dramatically greater fuel capacity and aerodynamic efficiency compared to earlier Constellation variants, at the cost of higher wing loading and increased takeoff speeds. The design trade off was clear: maximum range over everything else, positioning the L-1649A as Lockheed's direct answer to the Douglas DC-7C Seven Seas on competitive North Atlantic routes flown by TWA, Lufthansa and Air France.

The Starliner inherited the Constellation family's distinctive triple tail, pressurised cabin architecture and general fuselage cross section, but its wing, fuel system and flight control boosters were unique to the type. With a crew of five, the aircraft typically carried up to 99 passengers in mixed class configurations, though high density layouts could seat up to 106. Only 44 airframes were built at Lockheed's Burbank, California facility between 1956 and 1958 before the jet age rendered piston airliners obsolete on long haul routes.

• Wingspan: 150 ft 0 in (45.72 m)
• Length: 116 ft 2 in (35.41 m)
• Height: 24 ft 9 in (7.54 m)
• Wing area: 1,850 sq ft (171.9 m²)
• Maximum takeoff weight (MTOW): 156,104 lb (70,808 kg)
• Operating empty weight (OEW): 91,644 lb (41,569 kg)
• Typical passenger capacity: 99 (mixed class)
• Engines: 4 × Wright R-3350 988TC18EA-2 Turbo Compound, 3,400 hp each at takeoff
• Propellers: Hamilton Standard 43H60 three blade, constant speed, fully feathering, 16 ft 10 in (5.13 m) diameter
• Fuel capacity: approximately 9,600 US gal (36,336 litres) in integral wing tanks
• Range: 4,940 statute miles with 19,500 lb payload; up to 6,180 statute miles with reduced payload (manufacturer figures)
• Maximum cruise speed: approximately 290 mph (467 km/h) at optimum altitude
• Service ceiling: 23,700 ft (7,200 m)
• Rate of climb: 1,080 ft/min (5.5 m/s)

Flight Controls, Systems and Handling Technology

The Starliner introduced a completely redesigned hydraulic control booster system compared to the L-1049 series. Primary flight controls for ailerons, elevators and rudder relied on steel cable linkages assisted by hydraulic servo actuators, reducing pilot workload during long transatlantic sectors that could last 18 hours or more. The hydraulic servo actuators weighed approximately 94.7 kg, and the Fowler flap system covered 14.3 m² of wing area with a total weight of 424.6 kg. Propeller controls included constant speed governing with full feathering and reversing capability for ground operations. Crews operating demanding transatlantic schedules, much like those at airlines such as Aer Lingus during this era, faced extended duty periods that placed significant demands on both the aircraft's systems and cockpit ergonomics.

Published performance figures for the L-1649A can vary considerably depending on the source and the assumptions behind them. Range values are particularly sensitive to payload weight, fuel reserve policy, cruise altitude, atmospheric conditions and headwind or tailwind components. Maximum takeoff weight could differ between operators based on structural options, and cabin density directly affected the payload available for fuel. Altitude and temperature at departure airports also influenced field performance. For these reasons, the specifications listed above should be understood as representative manufacturer values rather than absolute limits applicable to every operational scenario.

Wright R-3350 Turbo Compound: The Engine Behind the Starliner

The L-1649A was powered exclusively by the Wright R-3350 Duplex Cyclone in its most advanced Turbo Compound form, the 988TC18EA-2 variant. Developed by Wright Aeronautical, a subsidiary of Curtiss Wright Corporation, the R-3350 was an air cooled, twin row, 18 cylinder radial engine with a displacement of 3,347 cubic inches (54.86 litres). The engine's bore was 6.125 inches and its stroke 6.312 inches, with a compression ratio of 6.5:1. In Turbo Compound configuration, three exhaust driven power recovery turbines (PRTs) captured energy from the exhaust gases and fed it back into the crankshaft through fluid couplings. This turbo compounding technology added roughly 550 hp at takeoff and approximately 240 hp during cruise, achieving a specific fuel consumption of around 0.4 lb/hp/hr, a remarkable 34% thermal efficiency for a piston engine of that era.

The R-3350 had a long and eventful development history. It first ran on a test bench in 1937 and gained notoriety for reliability problems during early service on the Boeing B-29 Superfortress in World War II, where overheating and engine fires were persistent concerns. Post war refinements, including improved cooling and the introduction of turbo compounding, transformed the engine into a dependable long range powerplant. Beyond the Starliner, Turbo Compound variants of the R-3350 powered the Douglas DC-7 family (including the transatlantic DC-7C), the Lockheed L-1049G Super Constellation, the Lockheed C-121 military transport and the Canadair CP-107 Argus maritime patrol aircraft. Non turbo compound versions served in the Douglas A-1 Skyraider, the Lockheed P-2 Neptune and the Fairchild C-119 Flying Boxcar. Wright Aeronautical remained the sole manufacturer to bring a turbo compound piston aero engine into large scale production, and the R-3350 TC series represented the pinnacle of reciprocating engine technology before turboprops and turbojets rendered it obsolete in the late 1950s.

The Lockheed L-1649 Starliner represented the pinnacle of piston engine long haul aviation when it entered service in June 1957. Designed specifically for nonstop transatlantic and transcontinental operations, it offered a maximum range of approximately 4,290 to 5,370 nautical miles depending on payload, making it the first airliner capable of flying nonstop from California to Europe. Typical sector lengths ranged from roughly 3,000 nautical miles on standard transatlantic crossings (New York to London or Paris) up to over 5,000 nautical miles on polar routes linking the U.S. West Coast to European capitals. Flight times on the New York to Paris route averaged around 14 hours westbound, nearly three hours faster than the competing Douglas DC-7C on the same sector.

The Lockheed L-1649 Starliner operated almost exclusively in long haul, point to point networks rather than hub and spoke systems. Airlines deployed it on their most prestigious intercontinental routes where range and payload mattered most. Trans World Airlines (TWA), the largest operator with 29 aircraft, scheduled up to 60 weekly flights between Europe and New York in the summer of 1958, with 30 of those flown by the L-1649A variant. Three aircraft per week also covered the polar route from Europe to California, sometimes nonstop. Daily utilisation was high by piston era standards, reflecting the airline's reliance on the type for premium long haul revenue. Operational challenges were significant: the aircraft's cruising speed of around 290 mph (467 km/h) left it vulnerable to the incoming jet age. The Boeing 707 replaced TWA's transatlantic Starliners by October 1961, and domestic scheduled services ended by December 1962. High operating costs, engine maintenance demands, and noise from the four Wright R-3350 turbo compound radial engines further shortened the type's commercial career. Only 44 airframes were ever built between 1956 and 1958.

Where the Lockheed L-1649 Starliner Operated

The Lockheed L-1649 Starliner was used almost entirely on routes linking North America and Europe, with limited extensions into Asia. In Europe, the aircraft served major gateway airports such as London, Paris Orly, Frankfurt, and Hamburg, connecting these hubs nonstop to New York and, via polar routing, to California. In North America, New York Idlewild (now JFK) was the primary hub, supplemented by Los Angeles for polar services and Chicago Midway for select Air France routings. A notable extension into Asia existed via Air France's twice weekly Paris to Anchorage to Tokyo service, scheduled at 30 hours 45 minutes. No evidence exists of regular Lockheed L-1649 Starliner passenger services to Africa or South America, although some airframes later found secondary cargo or charter roles in remote regions such as Alaska. For context on how later long haul narrowbody types evolved to serve similar point to point missions, see this overview of the Boeing 757-300.

• Europe: Air France operated 10 Starliners (marketed as "Super Starliners") on transatlantic routes from Paris Orly to New York Idlewild, with some services continuing to Mexico City. In summer 1959, the airline scheduled 22 nonstop L-1649 flights per week on the Orly to Idlewild sector and two weekly services on the Orly to Montreal to Chicago Midway route. Lufthansa received 4 aircraft (branded "Super Stars") and deployed them on nonstop transatlantic services from Frankfurt, Düsseldorf, and Paris to New York. Lufthansa's Starliners were delivered nonstop from Lockheed's Burbank factory to Hamburg. Jet replacement began in 1960.
• North America: Trans World Airlines was the dominant operator with 29 aircraft (branded "Jetstreams"). TWA inaugurated service on 1 June 1957 with a New York to London and Frankfurt flight. In September 1957, a TWA Starliner completed the first nonstop flight from Los Angeles to London. By 1958, TWA operated 30 weekly L-1649 sectors from Europe to New York and three weekly polar flights from Europe to California. Twelve TWA airframes were later converted to freighters, carrying transatlantic cargo until 1964 and domestic freight until 1967. Alaska Airlines used two Starliners for Military Air Transport Service (MATS) charter operations in the 1960s.
• Asia: Air France operated the only scheduled Starliner service into Asia, flying twice weekly from Paris via Anchorage to Tokyo beginning in April 1958. This polar routing was necessary as the airline was not permitted to fly directly to the U.S. West Coast.
• Africa: No confirmed regular Lockheed L-1649 Starliner passenger or cargo services to Africa have been documented.

Typical Seating Configurations

The Lockheed L-1649 Starliner featured a pressurised fuselage with a maximum cabin width of 3.28 m (10 ft 9 in) and a cabin length of 22.35 m (73 ft 4 in), arranged in a near circular cross section. Standard airline configurations used a 3+2 abreast layout (five seats across) with a seat pitch of approximately 81 cm (32 inches), accommodating around 92 passengers in 18 rows. Manufacturer specifications cite a maximum capacity of 99 passengers. In the context of the late 1950s, most operators used a single class cabin without distinct first class or economy sections as those are understood today.

Charter and secondary operators configured the aircraft more densely. World Airways, which acquired former TWA airframes, fitted all economy layouts seating up to 109 passengers with minimal galley space and only two rear lavatories. These high density configurations reduced per seat space to around 5 abreast over 22 to 23 rows. No documented evidence confirms sleeper berth arrangements or premium mixed class layouts, which were more common on earlier Constellation variants. Detailed surviving specifications can be found via the Lockheed Constellation Survivors project.

The Lockheed L-1649 Starliner was the final evolution of the legendary Constellation family, with 44 airframes (including the prototype) completed between 1956 and 1958. The type served primarily with Trans World Airlines, Air France and Lufthansa on long range transatlantic routes before being rapidly displaced by jet airliners such as the Boeing 707 and its successors. Frontline passenger operations lasted roughly four to five years, from mid 1957 to late 1961, although several Starliners continued in cargo and charter roles into the late 1960s. According to the Aviation Safety Network database, nine hull loss events are recorded for the L-1649A Starliner. Two of these resulted in major loss of life, while most of the remaining write offs involved non fatal incidents during cargo, training or illicit freight operations. In total, at least 163 fatalities are attributed to accidents involving this variant. Given the small fleet size and the comparatively brief operational window, the Starliner's loss rate appears elevated when expressed as a simple ratio; however, it must be interpreted in the context of 1950s aviation standards, less advanced weather radar, limited structural fatigue knowledge and the absence of modern crew resource management practices.

Notable Accidents Involving the Lockheed L-1649 Starliner

TWA Flight 891 (26 June 1959) – A TWA Starliner, registration N7313C, broke up in flight shortly after departing Milan Malpensa Airport in Italy. All 68 occupants perished. The Aviation Safety Network report indicates the aircraft suffered structural failure initiated by wing separation at approximately 17:35 local time, with wreckage falling on the town of Olgiate Olona. A lightning strike encountered during the climb is cited as the triggering event. The disaster underscored the vulnerability of piston era airframes to in flight structural failure and reinforced ongoing industry research into lightning protection, metal fatigue inspection intervals and structural redundancy that would later be embedded in jet transport certification standards.

Air France Flight 406 (10 May 1961) – Air France Starliner F‐BHBM, named De Grasse, disintegrated at approximately 20,000 feet over the Sahara Desert in French Algeria while en route from Fort Lamy (now N'Djamena) to Marseille and Paris. All 78 people on board were killed, making it the deadliest accident involving a Lockheed L-1649. Investigators determined that a nitrocellulose explosive device detonated in the empennage area, classifying the event as unlawful interference (sabotage). No perpetrator was ever identified. The bombing highlighted serious gaps in passenger and baggage screening and contributed to broader efforts across the industry to improve airport security protocols, particularly for routes transiting regions of political instability.

Aerocondor Crash in Bogotá (18 December 1966) – Former TWA Starliner N7301C, by then operated by Colombian carrier Aerocondor, crashed during approach to Bogotá Eldorado Airport. Of the 59 occupants, 17 lost their lives and 42 survived. Detailed causal findings are limited in publicly available records, but the accident added to growing evidence that ageing piston airliners required stricter maintenance oversight and operational limitations, especially when transferred to secondary operators.

Other Hull Losses – The remaining six write offs involved non fatal events: a landing gear collapse after striking a blast pad lip near Stockton, California (1968); a contraband flight that struck trees on departure from Paramaribo, Suriname (1969); an emergency landing in the Chilean desert after dual engine failure (1969); an approach undershoot in Rio de Janeiro (1961); a mis fuelling incident with jet fuel at Las Vegas; and a deliberate FAA controlled crash test at Phoenix Deer Valley in 1964, conducted jointly with the Flight Safety Foundation to study cabin survivability.

How Safe Was the Lockheed L-1649 Starliner?

Evaluating the safety of the Lockheed L-1649 Starliner requires historical perspective. The aircraft was designed and certificated in the mid 1950s, an era when structural fatigue science, weather detection technology and cockpit procedures were far less mature than today. Its Wright R 3350 Turbo Compound engines, while powerful, were complex and demanding in terms of maintenance. Despite these challenges, the Starliner enabled nonstop transatlantic crossings that redefined long haul travel, and many airframes accumulated thousands of hours without serious incident.

Of the nine hull losses, only two were caused by factors directly related to aircraft design or atmospheric interaction (the structural failure on TWA Flight 891). One was the result of criminal sabotage, and the majority of remaining losses stemmed from operational errors, maintenance lapses or use in unregulated freight operations after the type left mainline service. When measured against the total flight hours logged by the fleet across multiple continents, the Starliner's record was broadly comparable to other large piston airliners of its generation, such as the Douglas DC 7 and the earlier Lockheed L-1049 Super Constellation.

Modern aviation has benefited enormously from the lessons of the piston era. Advances in regulatory oversight by ICAO and national authorities, mandatory fatigue life programmes, cockpit resource management training and redundant flight control architectures have reduced fatal accident rates by orders of magnitude. Data published by the Aviation Safety Network consistently confirms that commercial air transport remains one of the safest modes of travel in the world, a reality built in part on the hard won experience of aircraft like the Lockheed L-1649 Starliner.
