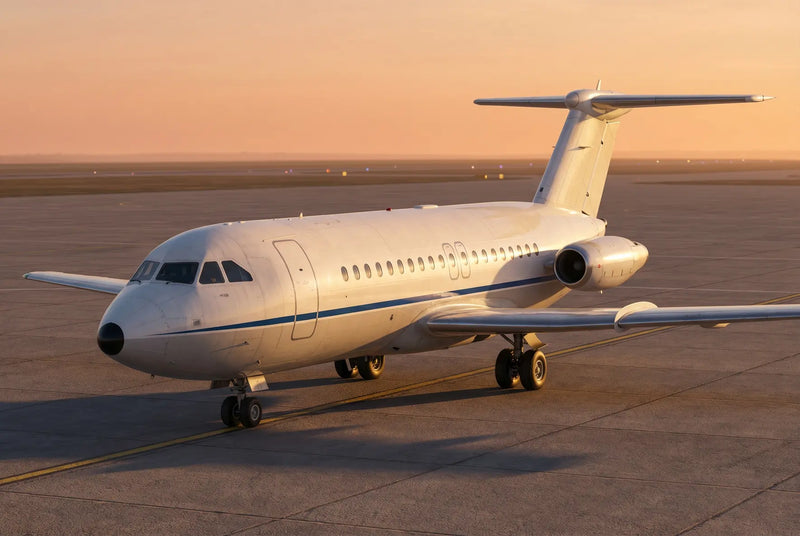

BAC One-Eleven 475 explained: design, use, and legacy

The BAC One-Eleven family was conceived in the late 1950s by Hunting Aircraft as a small jet airliner to replace turboprop types such as the Vickers Viscount on short-haul European routes. When Hunting merged into the newly formed British Aircraft Corporation (BAC) in 1960, the design was scaled up to around 80 seats and formally launched on 9 May 1961 with an order from British United Airways. The prototype, registered G-ASHG, made its maiden flight from the BAC assembly facility at Hurn, near Bournemouth, on 20 August 1963. After a tragic accident during deep-stall testing on 22 October 1963, which led to significant aerodynamic safety modifications including stick pushers and revised stall warnings, certification was achieved and the first delivery to BUA took place on 22 January 1965. Revenue service began on 9 April 1965.

Through the 1960s, BAC progressively expanded the One-Eleven family. The initial Series 200 and Series 300/400 (the latter for export markets with uprated Rolls-Royce Spey Mk 511 engines) established the type with airlines in Britain, the United States, and beyond. The stretched Series 500, introduced in 1967, added a longer fuselage seating up to 119 passengers, a larger wingspan increased by approximately 5 ft, and more powerful Rolls-Royce Spey Mk 512-14DW engines rated at 12,550 lbf (55.8 kN) each. These improvements gave BAC a new performance baseline from which to develop a specialised variant for more demanding operating environments.

In the late 1960s, competition from the Fokker F28 Fellowship in the short-haul market prompted BAC to create the BAC One-Eleven 475. Introduced in 1970, this variant was specifically optimised for hot-and-high conditions and rough-airfield operations. It combined the shorter Series 400 fuselage with the Series 500's extended wing and uprated Spey 512-14DW powerplant, together with purpose-built rough-field landing gear featuring larger low-pressure tyres and reinforced underbody protection. The result was an aircraft with superior takeoff performance at elevated temperatures and altitudes, capable of operating from unpaved and gravel runways that would be unsuitable for standard variants.

The prototype, G-ASYD (construction number 053), had originally been built as a Series 400 airframe in 1965 before successive conversions into the Series 500 prototype, the Series 475 demonstrator, and ultimately the Series 670 research aircraft. In its 475 configuration, G-ASYD completed its first flight on 27 August 1970 and was publicly displayed at the 1970 SBAC Farnborough Air Show, according to BAE Systems Heritage. Production aircraft were delivered from the Hurn factory to a small number of customers, with the last two Series 475 airframes delivered to McAlpine Aviation on 9 July 1984, marking the end of the sub-type's production run.

The primary commercial customer was Faucett Peru, which operated the type on scheduled domestic services into airports with unpaved gravel runways across the Peruvian highlands. Three closely related Series 485GD aircraft were also built for the Sultan of Oman's Air Force, featuring quick-change passenger/cargo interiors and a tip-up cargo-loading door. One Series 475 was later modified into the Series 670, which incorporated improved aerodynamics and reduced noise. In total, production of Series 475 and its derivatives remained limited, reflecting its niche role in the One-Eleven programme. The overall BAC One-Eleven family reached 244 aircraft produced between 1963 and 1989 (including nine licence-built Rombac One-Elevens assembled by Romaero in Romania).

What Distinguishes the BAC One-Eleven 475 from Other Variants

The BAC One-Eleven 475 occupies a unique position in the family. Unlike the standard Series 400, which used the less powerful Spey Mk 511 engines and the original shorter-span wing, the 475 inherited the Series 500's aerodynamic and powerplant upgrades. However, unlike the Series 500 itself, the 475 retained the shorter fuselage, resulting in a lighter airframe that could achieve shorter takeoff distances and better climb rates, particularly at high-elevation or hot-climate airports. The addition of a dedicated rough-field undercarriage and belly protection made it the only One-Eleven variant truly suited for unprepared surfaces.

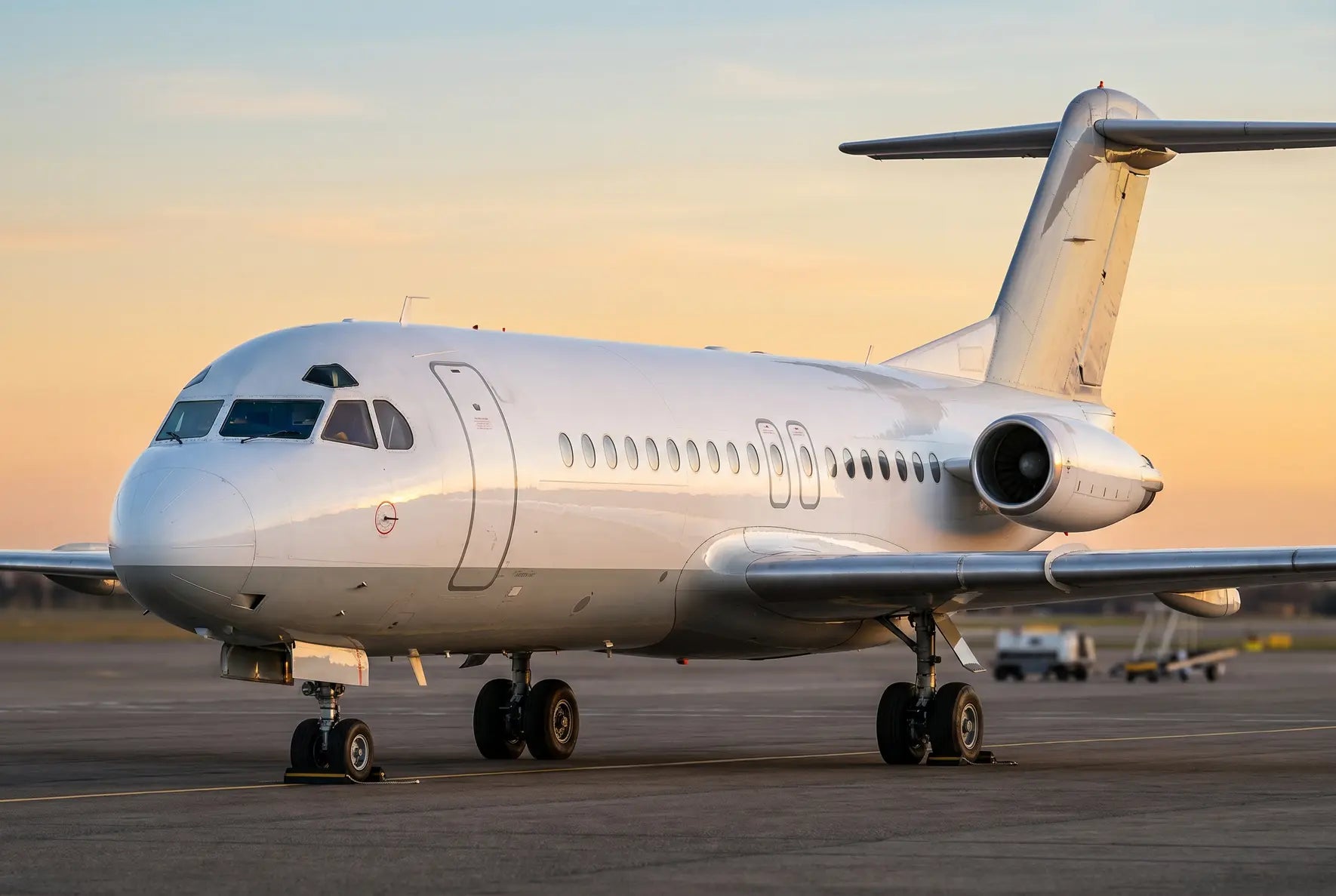

Compared to other regional jets of the era, the 475's combination of jet speed, short-field capability and gravel-strip tolerance was unusual. Modern equivalents designed for challenging airfield conditions, such as those discussed in the context of the Bombardier CRJ1000, have largely moved toward paved-runway operations, making the 475's rough-field pedigree a distinctive chapter in regional aviation history.

Key identifiers and features of the BAC One-Eleven 475 include:

• Engines: Two Rolls-Royce Spey Mk 512-14DW turbofans, each producing 12,550 lbf (55.8 kN) of thrust
• Fuselage: Series 400 short-body (approximately 93 ft 6 in / 28.5 m in length), seating up to 89 passengers
• Wing: Series 500 extended-span wing at 93 ft 10 in (28.6 m), offering improved lift at high altitudes
• Landing gear: Rough-airfield undercarriage with low-pressure tyres and reinforced underbody protection for gravel and unpaved surfaces
• Sub-designations: Included the 475AM (with hush kits), 485GD (Omani military quick-change cargo/passenger variant with tip-up cargo door), and the 670 (aerodynamic and noise improvements, one conversion)
• Manufacturer: British Aircraft Corporation (BAC), assembled at Hurn, Bournemouth, England

The BAC One-Eleven 475 was conceived as a hybrid variant designed to unlock short and unprepared runway capability while retaining the economics of a proven airframe. It married the Series 400 short fuselage with the Series 500 extended wing and more powerful engines, creating a unique combination optimised for hot and high airfield operations. BAE Systems Heritage notes that this variant was the last UK built version of the One-Eleven, purpose built for demanding environments where conventional jet airliners struggled with takeoff and landing performance.

The design trade offs are revealing. By keeping the shorter fuselage (83 ft 10 in), the 475 carried fewer passengers than the stretched Series 500, but its lower operating empty weight paired with the larger wing produced significantly better field performance. The extended wingspan of 93 ft 6 in, identical to the Series 500, gave a higher aspect ratio (approximately 8.65) and improved lift at lower speeds. A completely redesigned undercarriage with larger, low pressure tyres allowed safe operations from semi prepared and gravel strips, a feature that distinguished the 475 from every other One-Eleven variant. Airlines operating in regions such as the Middle East and developing nations with limited runway infrastructure were the primary customers for this niche model.

• Overall length: 93 ft 6 in (28.50 m); fuselage length 83 ft 10 in (25.55 m)
• Wingspan: 93 ft 6 in (28.50 m), with Series 500 extended wingtips
• Height: 24 ft 6 in (7.47 m)
• Maximum takeoff weight (MTOW): 98,500 lb (44,678 kg)
• Maximum landing weight (MLW): 87,000 lb (39,462 kg)
• Maximum zero fuel weight: approximately 68,500 lb (31,070 kg)
• Maximum payload: approximately 21,269 lb (9,647 kg)
• Engines: 2 x Rolls-Royce RB.163 Spey Mk 512-14DW turbofans, each rated at 12,550 lbf (55.8 kN)
• Maximum cruise speed: 541 mph (470 kt) at 21,000 ft; economy cruise approximately 461 mph (400 kt) at 25,000 ft
• Service ceiling: 35,000 ft (10,668 m)
• Range: approximately 1,253 to 1,482 NM (2,321 to 2,745 km), depending on payload and configuration
• Typical seating: 79 to 89 passengers in a single class layout (five abreast)
• Landing gear: redesigned with low pressure tyres for rough and unpaved runway operations

Systems, Flight Controls and Handling Technology

The BAC One-Eleven 475 inherited the proven systems architecture of the One-Eleven family. Flight controls were fully powered by dual hydraulic systems, with each system capable of independently operating primary control surfaces. The twin hydraulic circuits also served the landing gear extension and retraction, nosewheel steering, and wheel brakes. According to a UK AAIB report on a BAC 1-11 475, the No. 1 hydraulic system powered critical services including landing gear sequencing and steering lock changeover, highlighting the importance of hydraulic redundancy in the type. Engine control on the Spey 512 series relied on a hydromechanical fuel control unit linked to the cockpit thrust levers, with intake guide vanes and a seventh stage bleed valve managing compressor stability across the flight envelope.

Published performance figures for the BAC One-Eleven 475 can vary depending on several factors. Operator selected cabin density, optional equipment weight, fuel load, and atmospheric conditions such as altitude, temperature and humidity all influence takeoff field length, range and payload capacity. The figures listed above represent manufacturer baseline data under standard conditions, and real world operations at hot and high airfields would produce different numbers. Runway surface condition, whether paved, gravel or semi prepared, also affected the achievable performance of the 475, making it essential for operators to calculate performance on a case by case basis. For readers interested in how different airline operating environments shape pilot conditions and fleet choices, the connection between aircraft capability and route demands is always instructive.

Rolls-Royce Spey Mk 512-14DW: History, Data and Applications

The BAC One-Eleven 475 was powered by two Rolls-Royce RB.163 Spey Mk 512-14DW low bypass turbofan engines, each producing 12,550 lbf (55.8 kN) of thrust. The Spey family was developed by Rolls-Royce in the late 1950s as a scaled down derivative of the cancelled Medway programme, and it entered service in April 1964 aboard the BAC One-Eleven and the Hawker Siddeley Trident. The engine features a two spool design with a five stage low pressure (LP) compressor, a twelve stage high pressure (HP) compressor, ten can-annular combustion chambers, and two stage LP and HP turbines. The bypass ratio is approximately 0.64:1, classifying it as a low bypass turbofan.

Earlier One-Eleven variants used lower thrust Spey marks: the Series 200 flew with the Spey Mk 506 rated at 10,410 lbf, and the Series 300/400 stepped up to the Mk 511 at approximately 11,400 lbf. The Mk 512-14DW represented the most powerful civil Spey variant, and the "DW" suffix indicated a derated, water injection capable configuration designed to balance thrust output with noise and operational requirements. The general dimensions of the Spey family are approximately 204.9 in (5,204 mm) in length and 43.0 in (1,092 mm) in diameter, with a dry weight of around 4,093 lb (1,856 kg) for related military marks.

Beyond the BAC One-Eleven, the Spey engine family powered a diverse fleet of civil and military aircraft. On the civil side, it propelled the Hawker Siddeley Trident, the Fokker F28 Fellowship, and the Grumman Gulfstream II and III business jets. Military variants included the afterburning RB.168 used in the Blackburn Buccaneer S.2 and the F-4 Phantom (UK variants), while the Allison TF41, a licence built derivative, powered the LTV A-7 Corsair II for the US Air Force and Navy. The Spey core also found applications in marine propulsion, powering Royal Navy Type 23 frigates. The engine accumulated over 50 million flight hours across all variants, and its core architecture directly influenced the development of the Rolls-Royce Tay, a higher bypass successor that went on to power the Fokker 70 and Fokker 100 as well as the Gulfstream IV.

The BAC One-Eleven 475 was purpose built for a very specific operational niche: short to medium haul scheduled services into challenging airfields where conventional jet equipment could not safely operate. Combining the Series 400 short fuselage with the Series 500 enlarged wing and uprated Rolls-Royce Spey 512-14DW engines, the 475 offered a maximum payload range of approximately 1,480 nautical miles (2,741 km) and a cruising speed around 470 knots. Typical sectors for this variant ranged from 200 to 600 nautical miles, translating into flight times of roughly 30 minutes to just over one hour on most domestic routes.

The defining feature of the BAC One-Eleven 475 was its rough airfield capability. Fitted with reinforced landing gear, larger low pressure tyres and underbody protection panels, it could operate reliably from unpaved gravel runways and high elevation airports that were common in South America and other developing regions during the 1970s. This made it ideal for point to point domestic networks connecting capital cities with remote provincial airports, rather than conventional hub and spoke operations at major international hubs. Daily utilisation depended on the operator, but the aircraft typically flew multiple short sectors per day, returning to a main base for overnight maintenance.

With only nine aircraft built in total, according to Wikipedia, the BAC One-Eleven 475 remained one of the rarest One-Eleven variants. Its limited production reflected the highly specialised nature of its mission profile: only a handful of operators worldwide required a jet with this particular combination of short field performance, gravel strip tolerance and short fuselage capacity. Operators faced challenges including higher maintenance costs due to the reinforced undercarriage and limited parts availability as the type aged. The related BAC One-Eleven 500, which shared the same wing and powerplant but in a stretched fuselage for conventional paved runways, proved far more commercially successful with 87 examples built.

Where the BAC One-Eleven 475 Operated

The BAC One-Eleven 475 saw active service primarily in South America and the Pacific Islands, with closely related military derivatives also serving in the Middle East. No operators in Europe, mainland Asia or Africa are known to have flown the 475 variant in scheduled commercial service, although various other One-Eleven series were widespread across those continents. The aircraft was tailored for environments where jet service was desired but airfield infrastructure had not yet been modernised to paved standards.

In South America, the 475 found its primary commercial role with Faucett Perú, the country's oldest private airline. In the Pacific, Air Pacific of Fiji used the type on regional island routes. Meanwhile, the closely related Series 485GD was delivered to the Sultan of Oman's Air Force in the Middle East, configured for versatile military transport duties. No confirmed operators have been identified in North America, Europe or Africa for this specific variant.

• South America: Faucett Perú was the principal commercial operator, taking delivery of its BAC One-Eleven 475 aircraft from 1971. The airline deployed the type on scheduled domestic services from Lima's Jorge Chávez International Airport to destinations across Peru, including Cusco, Arequipa, Iquitos, Tarapoto, Chiclayo, Piura, Trujillo and other provincial cities. Many of these airports featured unpaved gravel runways and high altitude locations in the Andes, exactly the environment the 475 was engineered to handle. Sectors such as Lima to Cusco (approximately 350 nautical miles) and Lima to Iquitos (around 500 nautical miles) were typical missions for the type, as noted in records compiled by BAC 1-11 Jet.
• Pacific Islands: Air Pacific (now Fiji Airways) operated the BAC One-Eleven 475 on inter island and regional services across the South Pacific, where short runways and warm climate conditions suited the variant's enhanced takeoff performance and rough field gear.
• Middle East: The Sultan of Oman's Air Force received three examples of the closely related Series 485GD from 1974. These aircraft featured quick change passenger and cargo interiors and a tip up cargo loading door, enabling flexible use for VIP transport, troop movement and freight missions across Oman's desert airstrips, as documented by AirVectors.
• Europe, North America, Asia and Africa: No confirmed operators of the specific BAC One-Eleven 475 variant have been documented in these regions. Other One-Eleven series, however, were widely used by airlines such as British Airways, Dan-Air, Ryanair, American Airlines, Braniff Airways, Philippine Airlines, Nigerian Airways and Tarom across all four continents.

Typical Seating Configurations

The BAC One-Eleven 475 retained the shorter Series 400 fuselage, which limited maximum seating compared to the stretched Series 500. In a standard all economy class layout with five abreast seating (three seats on the left, two on the right, divided by a single aisle), the 475 typically accommodated between 74 and 89 passengers depending on seat pitch. Faucett Perú reportedly configured its aircraft with approximately 84 seats in a single class arrangement suited to domestic operations, while charter or lower density layouts could reduce the count further. No two class configurations are documented for this variant, given its focus on short haul domestic missions rather than premium intercontinental routes. Detailed seat map data for the 475 is scarce due to the tiny fleet size, but general One-Eleven cabin dimensions and layouts are described on the BAE Systems Heritage page covering the full One-Eleven family.

The BAC One-Eleven 475 belongs to a family of 244 aircraft produced between 1963 and 1989 by British Aircraft Corporation and, under licence, by Romaero in Romania. The Series 475 was a niche variant, with only around nine to thirteen airframes built, combining the shorter Series 400 fuselage with the strengthened wing, uprated Rolls Royce Spey 512 engines and rough field landing gear of the Series 500. Because so few were manufactured and they served a small number of operators, the 475 accumulated far fewer flight cycles than mainstream variants. No fatal accident has been attributed specifically to the BAC One-Eleven 475. The only documented event directly involving the sub type is a non fatal hydraulic system failure on VP CDA at London Luton Airport on 28 February 2000, investigated by the United Kingdom Air Accidents Investigation Branch (AAIB). To put the wider fleet in perspective, the Aviation Safety Network lists multiple hull loss events for the BAC One-Eleven programme overall across nearly four decades of commercial service, a period during which industry wide safety standards evolved significantly.

Notable Accidents and Incidents Across the One-Eleven Programme

Although the 475 variant itself has an essentially clean record, several high profile events involving other BAC One-Eleven sub variants led to meaningful safety improvements that benefited every aircraft in the family.

• 1963 prototype deep stall (G ASHG): During stall testing on 22 October 1963, the prototype entered a deep stall at around 16,000 ft near Chicklade, England, killing all seven crew members. At high angles of attack the T tail was blanketed by disturbed airflow from the wings and engine nacelles, rendering the elevators ineffective. The investigation led BAC to fit stick shakers and stick pushers to all production One-Elevens, an incidence limitation system that became a regulatory benchmark for T tailed jet transports worldwide.
• 1967 Mohawk Airlines Flight 40 (N1116J): On 23 June 1967 a Series 204AF crashed near Blossburg, Pennsylvania, after an in flight fire in the auxiliary power unit plenum chamber, fuelled by hydraulic fluid from a malfunctioning non return valve. All 34 occupants were lost. The FAA investigation resulted in Airworthiness Directive 68 01 01, mandating modifications to the APU plenum installation on all BAC One-Elevens to prevent heat damage and hydraulic fluid ignition.
• 1990 British Airways Flight 5390 (G BJRT): On 10 June 1990 the left windscreen of a Series 528FL detached during climb through FL173 over Didcot, England, after incorrect bolts had been fitted during maintenance. The captain was partially ejected but held by cabin crew, and the aircraft diverted safely to Southampton with no fatalities. The AAIB report (1/1992) prompted sweeping revisions to windscreen fastener specifications, mandatory double verification procedures for critical maintenance tasks and tighter oversight of contracted engineering work across the entire UK fleet.
• 2002 EAS Airlines Flight 4226: On 4 May 2002 a Series 500 crashed shortly after departure from Kano, Nigeria, resulting in significant loss of life on board and on the ground. The event was linked to operational factors including weight and performance management. It prompted Nigerian authorities to strengthen regulatory oversight and airline operational standards.

How Safe Is the BAC One-Eleven 475

When evaluating the safety of the BAC One-Eleven 475, it is important to consider the broader context. The type entered service in the 1960s, an era when accident rates across commercial aviation were substantially higher than today. Many of the incidents that affected the wider One-Eleven fleet occurred under operating conditions, maintenance practices or regulatory environments that have since been transformed. Each major event triggered tangible improvements in aircraft design, crew training, maintenance oversight and airworthiness regulation, benefits that were retrofitted across the entire One-Eleven family including the 475.

The 475 itself was engineered for demanding environments, featuring reinforced landing gear, low pressure tyres and structural provisions for unprepared runway operations. These design choices reflected a conservative engineering philosophy that prioritised resilience. Operators of the variant, such as those supporting services in South America and the Middle East, adhered to standard operating procedures aligned with the oversight frameworks of their respective civil aviation authorities.

For readers interested in how British regional jet design evolved beyond the One-Eleven era, the BAe 146 300 offers an instructive comparison as another British short field performer built for challenging airports. According to statistics published by Airbus in its annual safety analysis, the global hull loss rate for commercial jets has fallen dramatically over the decades, from several accidents per million flights in the 1960s to well below one today. Aviation remains, by a wide margin, one of the safest modes of long distance transport available.
