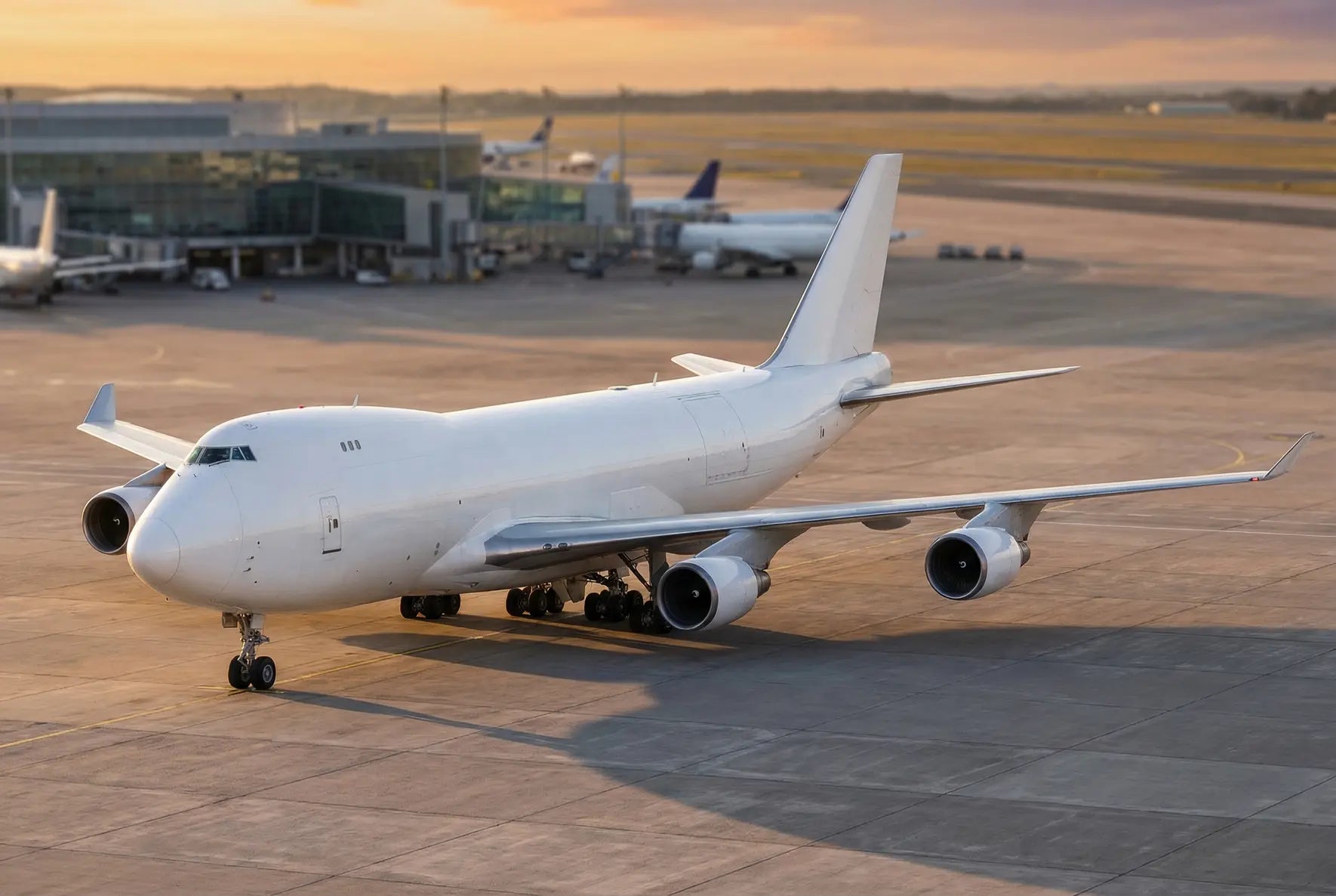

Boeing 747-400ERF: purpose, operators, and key specs

The Boeing 747 400ERF (Extended Range Freighter) emerged as a specialised long haul cargo variant within the legendary Boeing 747 400 family, building on decades of wide body freighter evolution. To understand why this aircraft was created, it is essential to trace the origins of the 747 400 programme and the growing demand from cargo operators for greater range and payload flexibility on intercontinental routes.

The broader 747 400 programme was launched in October 1985, with Northwest Airlines as the initial customer. The first 747 400 was rolled out on 26 January 1988 and completed its maiden flight on 29 April 1988 from Paine Field, Everett, Washington. FAA type certification followed on 9 January 1989 for Pratt & Whitney PW4000 powered variants, with General Electric CF6 80C2 certification granted on 18 May 1989 and Rolls Royce RB211 524G certification on 8 June 1989. The 747 400 introduced significant improvements over earlier 747 Classics, including a two crew glass cockpit, winglets, advanced engines, and digital avionics, reducing operating costs by approximately 10% and extending range by over 1,000 nautical miles compared to its predecessors.

The dedicated freighter version, the 747 400F, received its initial order from Cargolux on 13 September 1989. It completed its first flight on 4 May 1993 and received FAA certification on 22 October 1993, entering service with Cargolux on 17 November 1993. The 747 400F retained the shorter upper deck of earlier 747 freighters and featured a large nose cargo door, accommodating up to 30 main deck pallets.

By the late 1990s, international cargo operators required even greater range capability to serve expanding transoceanic routes without payload penalties. In response, Boeing announced the Longer Range 747 400 programme on 28 November 2000, with Qantas as the launch customer for the passenger 747 400ER variant. The freighter counterpart, designated the Boeing 747 400ERF, was developed in parallel, applying the same extended range enhancements to the proven 747 400F airframe. Both variants were manufactured by Boeing at its Everett factory in Washington state, the same facility responsible for every 747 ever built.

The first Boeing 747 400ERF was delivered on 17 October 2002 to Air France Cargo (via lessor ILFC), marking the type's entry into commercial service. Production continued steadily over the following years, with deliveries distributed as follows: 3 in 2002, 4 in 2003, 5 in 2004, 2 in 2005, 6 in 2006, 8 in 2007, 6 in 2008, and 6 in 2009. The final Boeing 747 400ERF was delivered to Kalitta Air in December 2009, bringing the total number of 747 400ERF aircraft produced to 40 units. This also marked the end of the entire 747 400 production run, which totalled 694 aircraft across all sub variants over 20 years. Notable operators of the Boeing 747 400ERF included Air France Cargo, Cathay Pacific Cargo, and several other cargo carriers worldwide. For readers keen to explore more about iconic aircraft like the 747, the Ready for Takeoff aviation book collection offers engaging and detailed references.

What Sets the Boeing 747 400ERF Apart from the Standard 747 400F

The Boeing 747 400ERF was not a simple rebrand of the 747 400F. It incorporated a set of targeted structural and systems modifications, all derived from the passenger 747 400ER programme, specifically designed to unlock greater range without sacrificing payload capacity. These changes addressed the core limitation cargo operators faced: the need to fly longer sectors at or near maximum payload.

The most significant change was the addition of a horizontal stabiliser fuel tank, adding approximately 3,300 US gallons of fuel capacity. This extra fuel, combined with a higher maximum takeoff weight (MTOW) of 910,000 lb (412,775 kg) compared to the standard 747 400F's 875,000 lb (396,900 kg), extended the 747 400ERF's range to approximately 4,970 nautical miles with maximum payload, a gain of roughly 525 nautical miles over the baseline freighter. To support the increased weight, the 747 400ERF received reinforced landing gear with larger main gear wheels and carbon brakes, along with enhanced rudder authority for improved crosswind and high speed handling.

The following list summarises the verified variant identifiers that distinguish the Boeing 747 400ERF from its closest relatives:

• MTOW: 910,000 lb (412,775 kg), versus 875,000 lb for the standard 747 400F
• Horizontal stabiliser fuel tank: approximately 3,300 US gallons of additional fuel capacity
• Range (maximum payload): approximately 4,970 nm (9,200 km), a gain of roughly 525 nm over the 747 400F
• Landing gear: strengthened with larger wheels and carbon brakes for higher weight operations
• Engine options: General Electric CF6 80C2 series, Pratt & Whitney PW4000 series, or Rolls Royce RB211 524G (same as 747 400F)
• Wingtip devices: 1.8 m (6 ft) winglets, standard across all 747 400 variants
• Cargo capacity: up to 30 main deck pallets, nose cargo door, lower hold cargo compartments (identical to 747 400F)
• Maximum structural payload: approximately 248,600 lb (112,760 kg)

While the Boeing 747 400ERF shared its predecessor's overall dimensions, cargo systems, and cockpit layout, the combination of increased fuel capacity, higher MTOW, and structural reinforcements made it a distinct solution for long haul freight operations. Its production run of 40 aircraft was modest compared to the broader 747 400 family, but the variant filled a critical niche for operators requiring intercontinental reach with heavy cargo loads. The type was eventually succeeded by the Boeing 747 8 Freighter, which offered further improvements in range, payload, and fuel efficiency.

The Boeing 747-400ERF (Extended Range Freighter) was designed to push the payload/range envelope beyond the standard 747-400F. Structurally based on the same widebody airframe, the ERF variant raised the maximum takeoff weight from 396,900 kg (875,000 lb) on the 747-400F to 412,775 kg (910,000 lb), allowing operators to carry heavy freight over intercontinental distances without a refuelling stop. The fuselage, wing geometry and cargo door arrangement remain identical to the standard freighter, so the ERF retains full compatibility with existing ground handling equipment and ULD configurations.

Boeing achieved the extended range primarily through structural reinforcement and increased fuel capacity rather than a wholesale redesign. The result is an aircraft that can trade payload mass for additional fuel when missions demand longer sectors, or exploit the higher gross weight to carry more cargo on shorter routes. This flexibility made the 747-400ERF a favoured asset for global freight integrators and cargo airlines operating demanding long haul networks.

• Overall length: 70.70 m (231 ft 11 in)
• Wingspan (with winglets): 64.44 m (211 ft 5 in)
• Height: 19.41 m (63 ft 8 in)
• Maximum takeoff weight (MTOW): 412,775 kg (910,000 lb)
• Maximum zero fuel weight (MZFW): approximately 412,770 kg (910,000 lb class, operator option dependent)
• Fuel capacity: approximately 216,840 litres (57,285 US gal), significantly greater than the standard 747-400F
• Design range: approximately 9,200 km (4,970 nmi) with maximum structural payload
• Cruise speed: Mach 0.845 (typical long range cruise)
• Engines offered: General Electric CF6-80C2B1F (58,090 lbf) or Pratt & Whitney PW4062 (62,000 lbf)
• Flight deck: two crew digital glass cockpit with six CRT EFIS displays, dual FMC, EICAS and triple ring laser gyro inertial reference
• Cargo doors: powered nose door plus side cargo door on the main deck; lower hold access doors
• Total cargo volume: approximately 735 m³ (25,950 ft³), combining main deck and lower hold
• Units delivered: 40 airframes (deliveries from 2002 to 2009)

Systems, Avionics and Handling Technology

The 747-400ERF inherits the proven systems architecture of the 747-400 family. Primary flight controls are hydraulically actuated through three independent systems pressurised at 3,000 psi, each driven by engine mounted pumps with electric backup. Ailerons, elevators, rudder sections and spoiler panels all benefit from this triple redundancy. The autopilot is a dual channel digital system derived from the 757/767 programme, with altitude intervention logic for precise vertical navigation. Engine control on both available powerplants uses Full Authority Digital Engine Control (FADEC), optimising thrust scheduling, fuel metering and limit protection across the flight envelope.

Braking relies on carbon brake assemblies with anti skid and autobrake modes, improving heat dissipation and reducing weight compared with steel brakes on earlier 747 variants. The Central Maintenance Computer (CMC) aggregates Built In Test Equipment (BITE) fault data from all major systems, enabling rapid troubleshooting and supporting condition based maintenance programmes. Performance computation for takeoff and landing is typically handled through onboard or EFB based applications that account for actual weight, temperature, pressure altitude, runway condition and wind, giving crews accurate V speeds and required field lengths for every departure.

Published performance figures for the 747-400ERF vary depending on several factors. Operator selected options such as optional MZFW or MLW upgrades, actual cargo density, centre of gravity position and atmospheric conditions all influence real world range and field length. Boeing quotes design range under standard day, ISA conditions at maximum structural payload, but operators routinely see different numbers once temperature, altitude, wind and runway surface are factored in. Comparing specifications across sources therefore requires attention to the stated assumptions behind each figure.

Engines: GE CF6-80C2B1F and Pratt & Whitney PW4062

Unlike the passenger 747-400, which offered three engine families (adding the Rolls Royce RB211), the 747-400ERF was certified with two options: the General Electric CF6-80C2B1F and the Pratt & Whitney PW4062.

The CF6-80C2 family traces its lineage to the original CF6-6, which entered service in 1971 on the Douglas DC-10. GE progressively increased fan diameter, airflow and pressure ratio through the CF6-50 and CF6-80A series before launching the CF6-80C2 in the mid 1980s with a 93 inch (2.36 m) fan and thrust ratings spanning 48,000 to 63,500 lbf. The CF6-80C2B1F variant, rated at 58,090 lbf, became the workhorse of the 747-400 freighter fleet. The broader CF6-80C2 family also powers the Airbus A300-600, A310, Boeing 767-200ER/300ER, and McDonnell Douglas MD-11, with over 1,200 aircraft using variants in this thrust class. The engine features a single stage fan, a 14 stage high pressure compressor, an annular combustor and a five stage low pressure turbine, delivering a bypass ratio of approximately 5.0 to 5.3.

The Pratt & Whitney PW4062 belongs to the PW4000-94 family, which succeeded the legendary JT9D. First run in 1984 and FAA certified in 1986, the PW4000-94 series entered commercial service in 1987. The PW4062 is rated at 62,000 lbf (276 kN), with a 94 inch fan, a bypass ratio of 4.8:1, an overall pressure ratio of 32.3:1 and a dry weight of approximately 9,570 lb (4,341 kg). Beyond the 747-400, PW4000-94 variants power the Boeing 767, Airbus A300-600 and A310, and the McDonnell Douglas MD-11. A militarised derivative, designated F139, powers the KC-46 Pegasus tanker programme for the United States Air Force, demonstrating the platform's enduring reliability and adaptability across both commercial and defence applications.

The Boeing 747-400ERF (Extended Range Freighter) is a dedicated all‑cargo widebody designed for high‑capacity, long‑haul freight operations. With a maximum takeoff weight of 412,770 kg (910,000 lb) and a range of approximately 4,980 nmi (9,220 km) at maximum revenue payload of 112,990 kg, it offers roughly 525 km more range than the standard 747‑400F while sharing the same total cargo volume of about 735 m³. This extended reach makes the Boeing 747-400ERF particularly suited to ultra‑long stage lengths such as transpacific crossings and Asia to Europe corridors without the need for a fuel stop.

Typical missions for this freighter variant range from 8 to 14 hours of block time per sector, covering routes between 3,500 and 4,900 nmi. High‑utilisation cargo operators can log between 10 and 13 block hours per day, and well‑maintained airframes have accumulated well over 100,000 flight hours across their service lives. The aircraft is equipped with a nose cargo door and a side cargo door, enabling rapid loading and unloading of standard 96 × 125‑inch pallets and oversized freight. It typically accommodates up to 30 main‑deck pallet positions plus 16 to 18 LD‑1 or LD‑3 containers in the lower hold, giving operators significant flexibility in cargo mix.

The Boeing 747-400ERF operates primarily in hub‑and‑spoke cargo networks linking major intercontinental freight hubs such as Hong Kong (HKG), Incheon (ICN), Anchorage (ANC), Luxembourg (LUX), Amsterdam (AMS) and Chicago (ORD). Some operators also deploy it on point‑to‑point charter services and ad hoc cargo missions for e‑commerce, perishable goods and oversized shipments. Because the type requires long runways (typically above 3,000 m at maximum weight) and specialised ground handling equipment, it is almost exclusively flown into well‑equipped international airports rather than secondary or regional fields.

Operational challenges for Boeing 747-400ERF operators include rising fuel costs associated with four GE CF6‑80C2 engines, increasing maintenance expenditures on airframes now well over 15 years old, a shrinking pool of type‑rated flight crew, and growing competition from newer, more fuel‑efficient twin‑engine freighters such as the Boeing 737‑900ER family derivatives and the Boeing 777F. Despite these pressures, the nose‑loading capability and sheer volumetric capacity of the 747‑400ERF keep it relevant for outsized cargo that twin‑engine freighters cannot accommodate.

Where the Boeing 747-400ERF Operates by Region

Boeing delivered 40 examples of the 747-400ERF between 2002 and 2009. These aircraft have served cargo carriers across Europe, North America, Asia and the Middle East, operating on the world's busiest air freight corridors. In Asia, the variant is central to transpacific and intra‑Asian cargo flows, linking manufacturing hubs in China and South Korea to consumer markets in North America and Europe. European operators use the type on eastbound routes to Asia and westbound services to the Americas, while Middle Eastern carriers historically leveraged the aircraft from Gulf hubs connecting Africa, Asia and Europe.

• Europe: Air France Cargo received two of the first 747-400ERFs in 2002 via ILFC and operated them on long‑haul freight routes from Paris Charles de Gaulle before retiring the type. KLM Cargo (now part of Air France–KLM) took delivery of three examples from 2003 and deployed them from its Amsterdam Schiphol hub to destinations in Asia and North America. More recently, One Air, a UK‑based all‑cargo startup operating from East Midlands Airport, has leased 747-400ERFs from AeroTransCargo and flies scheduled and charter freight services between Hong Kong and Europe.
• North & South America: National Airlines, based in Orlando, introduced an ex‑AirBridgeCargo 747-400ERF to its fleet in 2022 for heavy and cold‑chain cargo charters. Several airframes have also passed through ACMI and wet‑lease arrangements with operators serving North American cargo demand from hubs such as New York JFK, Chicago O'Hare and Anchorage, the latter being a key technical stop on transpacific freight routes.
• Asia: Korean Air Cargo currently operates four Boeing 747-400ERFs from Incheon International Airport on transpacific and Europe‑bound cargo services, and is planning eventual replacement with Boeing 777‑8F freighters. Cathay Pacific Cargo was among the largest ERF customers, receiving six aircraft and operating them from its Hong Kong hub on dense Asia–Europe and Asia–North America corridors. China Cargo Airlines, a subsidiary of China Eastern, received its first 747-400ERF in September 2006 and used the type to support booming export freight from Shanghai Pudong. AirBridgeCargo Airlines, based in Moscow but focused on Asia–Europe routes, operated eight 747-400ERFs before the fleet was grounded following sanctions in 2022.
• Africa & Middle East: Emirates SkyCargo operated 747-400ERFs from its Dubai hub, connecting cargo flows between Africa, Asia and Europe before transitioning to the Boeing 777F. No Africa‑based carriers are known to have operated the 747-400ERF as a primary fleet type, though the aircraft has served African destinations on charter rotations from European and Middle Eastern operators.

Cargo Configuration and Loading Layout

As a purpose‑built freighter, the Boeing 747-400ERF has no passenger cabin. The entire main deck is a single open cargo bay accessible through a hydraulically operated nose door and a large side cargo door on the port side. According to the Boeing 747‑400F/ERF freighter brochure, the main deck can hold up to 30 standard 96 × 125‑inch pallets in various contoured and flat configurations, providing approximately 605 m³ of usable volume. The lower hold adds roughly 130 m³ spread across forward, aft and bulk compartments, accommodating up to 18 LD‑1 containers.

The nose door is a defining feature that distinguishes the 747‑400ERF from twin‑engine freighters. It allows operators to load long, oversized items such as aerospace components, industrial machinery and humanitarian relief supplies that cannot fit through a standard side door. Operators like Korean Air Cargo and Cathay Pacific Cargo have used this capability extensively on project cargo and charter missions. For a broader comparison of how different Boeing types are configured for various roles, the Boeing 747‑400 Wikipedia article provides a comprehensive overview of all variants and their specifications.

The Boeing 747-400ERF holds a notably clean safety record. Of the 40 airframes built between 2002 and 2009, no 747-400ERF has been involved in a hull loss or fatal accident. As an extended range freighter derivative of the Boeing 747-400, the aircraft shares its structural design, avionics suite and certification basis with the wider 747-400 family, which has accumulated well over eight million flights since entering service in 1989. The broader 747-400 fleet, encompassing passenger, combi, freighter and converted variants, records a hull loss rate of approximately 0.06 per million departures according to AirSafe.com, one of the lowest figures for any widebody aircraft of its generation. That context is important when evaluating the safety of the 747-400ERF, because freighter operations involve unique risk factors such as hazardous cargo, remote airfields and reduced crew complement.

Notable Accidents Involving 747-400 Freighter Variants

Although no accident has involved a 747-400ERF specifically, three events affecting closely related 747-400 freighter variants have shaped cargo aviation safety worldwide.

• UPS Airlines Flight 6 (2010) – A 747-400F operating from Dubai to Cologne experienced an in-flight cargo fire, likely caused by lithium battery thermal runaway in the forward cargo area. Dense smoke penetrated the cockpit, disabling instruments and impairing crew visibility. Both pilots were killed when the aircraft crashed during an attempted return to Dubai. The investigation led by the UAE General Civil Aviation Authority prompted tighter international restrictions on the shipment of lithium batteries aboard cargo aircraft, improvements to smoke detection and fire suppression requirements, and revisions to cockpit smoke emergency procedures across the industry.
• Asiana Airlines Flight 991 (2011) – A 747-400F freighter en route from Seoul Incheon to Shanghai broke up and crashed into the sea off Jeju Island. Both crew members perished. Investigators attributed the loss to an in-flight cargo fire, reinforcing concerns about the adequacy of cargo fire detection and suppression systems on large freighters. The event contributed to ongoing regulatory reviews of hazardous materials packaging and loading protocols.
• National Airlines Flight 102 (2013) – A 747-400BCF (Boeing Converted Freighter) crashed shortly after takeoff from Bagram Airfield, Afghanistan, killing all seven people on board. The probable cause was rearward shifting of improperly restrained heavy military vehicles, which moved the centre of gravity beyond limits and rendered the aircraft uncontrollable. In the aftermath, the FAA issued airworthiness directives tightening cargo restraint standards for oversized loads and mandating enhanced weight and balance verification procedures for converted freighters.

Each of these events, while not directly involving the 747-400ERF, targeted the same airframe platform and drove measurable improvements in freighter safety standards globally. The lessons translated into revised ICAO dangerous goods regulations, updated IATA cargo handling manuals and stricter operator training requirements for loadmasters and flight crew members.

How Safe Is the Boeing 747-400ERF?

The 747-400ERF benefits from the mature design philosophy of the 747-400 platform: a glass cockpit with Electronic Flight Instrument Systems (EFIS), quadruple engine redundancy providing excellent engine out performance, redundant hydraulic and electrical systems, and an airframe certified to meet the most stringent structural fatigue standards. These features, combined with decades of operational feedback and continuous airworthiness directives from the FAA and EASA, give the type a robust safety foundation.

When measured against traffic volume, the numbers are reassuring. The 747-400 family's hull loss rate of roughly 0.06 per million departures compares favourably with other widebody types and represents a dramatic improvement over earlier 747 generations, which recorded rates above 1.0 per million departures. Modern standard operating procedures (SOPs), enhanced crew resource management training, predictive maintenance programmes and continuous regulatory oversight all contribute to keeping the type safe.

According to Aviation Safety Network data, the overall 747-400 accident rate has declined steadily as older airframes retire and operators adopt updated safety practices. With zero hull losses attributed to the 747-400ERF variant itself, the aircraft stands as one of the safest large freighters ever produced. More broadly, commercial aviation remains one of the safest modes of transport, with global fatal accident rates continuing to fall year on year.
